# 1 27-07-2011 , 06:11 AM
Subscriber
Join Date: Feb 2006
Posts: 1,937

Hot key for dividing grid mesh?

Does anyone know the Hot key to toggle the intensity of the grid?

# 2 27-07-2011 , 07:23 AM
Subscriber
Join Date: Feb 2006
Posts: 1,937

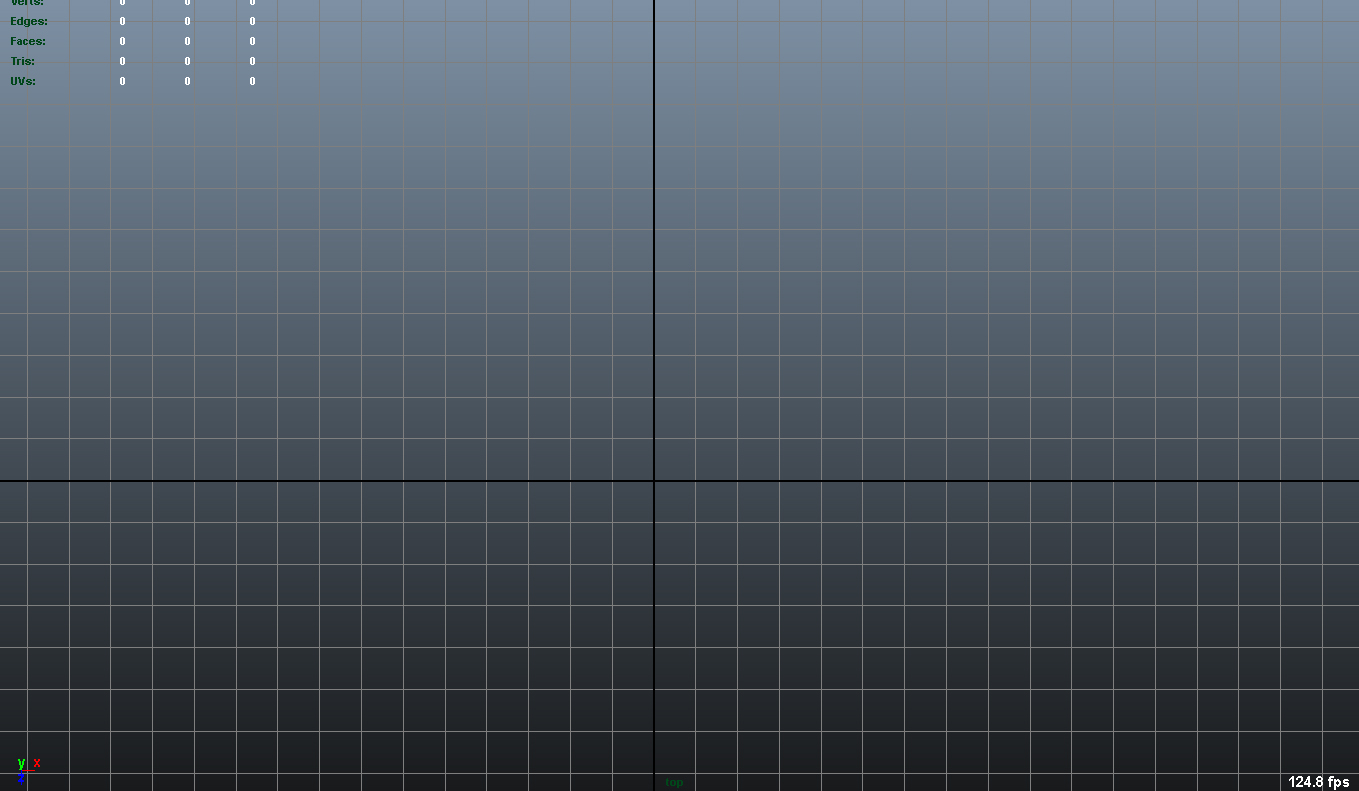

By this i mean, adding divisions... Here's a picture.

Attached Thumbnails
# 3 27-07-2011 , 11:26 PM
Gen's Avatar
Super Moderator
Join Date: Dec 2006
Location: South FL
Posts: 3,522
I don't know if there is a procedure to cycle through different grid densities but it's easy enough to script one and slap it on a custom hotkey.user added image

Code:
{
        //The light med and heavy values are used for their corresponding grid densities
        //Change them if you want.
        int $lightSpacing               = 50;                   //Value for lighter grid density
        int $medSpacing                 = 10;                   //Value for medium grid density
        int $heavySpacing               = 5;                    //Value for heavy grid density
        int $currentSpacing             = `grid -q -spacing`;   //Value for current grid density
        string $gridSpacingHeadsUP      = "Grid spacing is ";   //Value for heads up message

        //If equal to lightSpacing & greater than medSpacing
        //set grid spacing to medium & print heads up msg.

        if (($currentSpacing <= $lightSpacing) && ($currentSpacing > $medSpacing )){
                grid -spacing $medSpacing;
                headsUpMessage ($gridSpacingHeadsUP + $medSpacing);

        //If less/equal to medSpacing & greater than heavySpacing
        //set grid spacing to heavy & print heads up msg.

        }else if (($currentSpacing <= $medSpacing) && ($currentSpacing > $heavySpacing )){
                grid -spacing $heavySpacing;
                headsUpMessage ($gridSpacingHeadsUP + $heavySpacing);

        //If equal/less than heavySpacy set grid spacing to light & print heads up msg.

        }else if ($currentSpacing <= $medSpacing){
                grid -spacing $lightSpacing;
                headsUpMessage ($gridSpacingHeadsUP + $lightSpacing);

        }

}


- Genny
__________________
::|| My CG Blog ||::
::|| My Maya FAQ ||::
# 4 27-07-2011 , 11:30 PM
bullet1968's Avatar
Lifetime Member
Join Date: Feb 2010
Location: Australia
Posts: 4,255
I looked everywhere (well nearly) MJ...thanks Gen. This would be nice for me too...as my bloody Survey background DEMANDS some form of true measure...to be able to divide incrementally with a hotkey would be cool...


bullet1968

"A Darkness at Sethanon", a book I aspire to model some of the charcters and scenes
# 5 28-07-2011 , 01:20 AM
Gen's Avatar
Super Moderator
Join Date: Dec 2006
Location: South FL
Posts: 3,522
No problem, good to hear its already useful. user added image


- Genny
__________________
::|| My CG Blog ||::
::|| My Maya FAQ ||::
# 6 02-08-2011 , 03:02 AM
Subscriber
Join Date: Feb 2006
Posts: 1,937
Hey, sorry for the late reply GecT...

And wanted to say THANK YOU! Exactly what i was looking for user added image

At first, i didn't understand how it all worked together & connected but finally understand and modified it to my liking user added image
