Square in cylinder

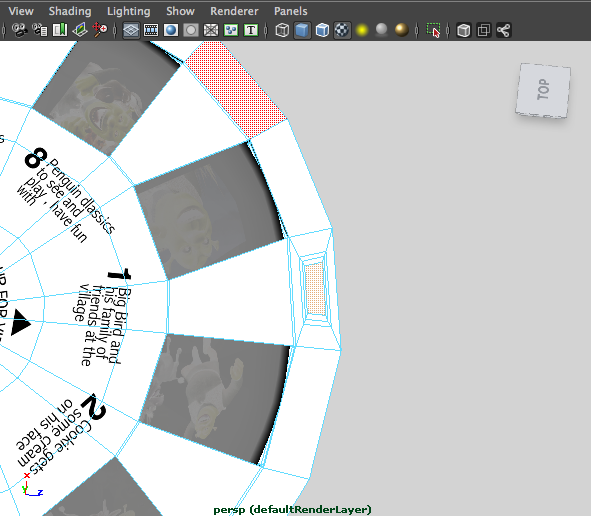

Hi, I could be just tired here, but can't seem how to figure out to put a small square cit out into the edge of this cylinder..

Screen shots attached.

Graham
Attached Thumbnails

Quote
# 2 21-05-2013 , 04:33 PM
clocker1's Avatar
Bored but busy
Join Date: Mar 2011
Location: Cleveland
Posts: 76
It's rounding because it needs support edges

Quote
# 3 21-05-2013 , 04:45 PM
Events Team at Wargaming.net
Join Date: Dec 2008
Location: Crystal Lake, Illinois
Posts: 486
Aye, what Clocker1 said, just add a few edge loops around, might be faster to select the edges and then apply a bevel to it.

Quote
# 4 21-05-2013 , 04:50 PM
clocker1's Avatar
Bored but busy
Join Date: Mar 2011
Location: Cleveland
Posts: 76
Fill it, then select the face, click extrude and scale it in slightly maybe twice

Quote
# 5 21-05-2013 , 05:03 PM
Sircharles's Avatar
Registered User
Join Date: Dec 2010
Location: Uk
Posts: 193

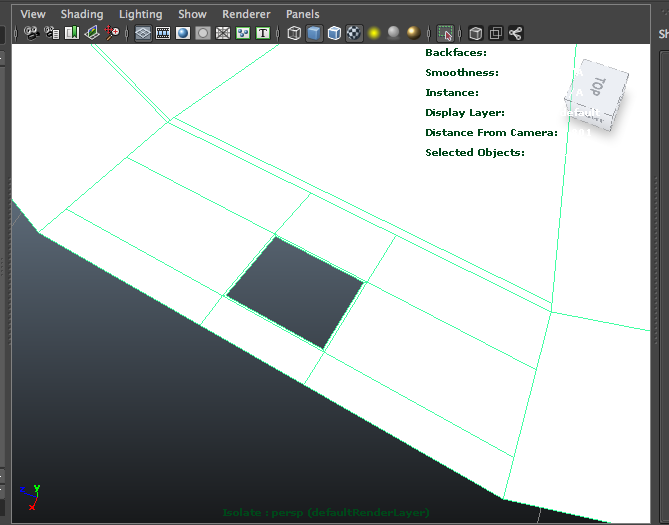

That doesn't seem to work.
Attached Thumbnails

Quote
# 6 21-05-2013 , 05:21 PM
daverave's Avatar
The thin red line
Join Date: Aug 2009
Location: England
Posts: 4,472

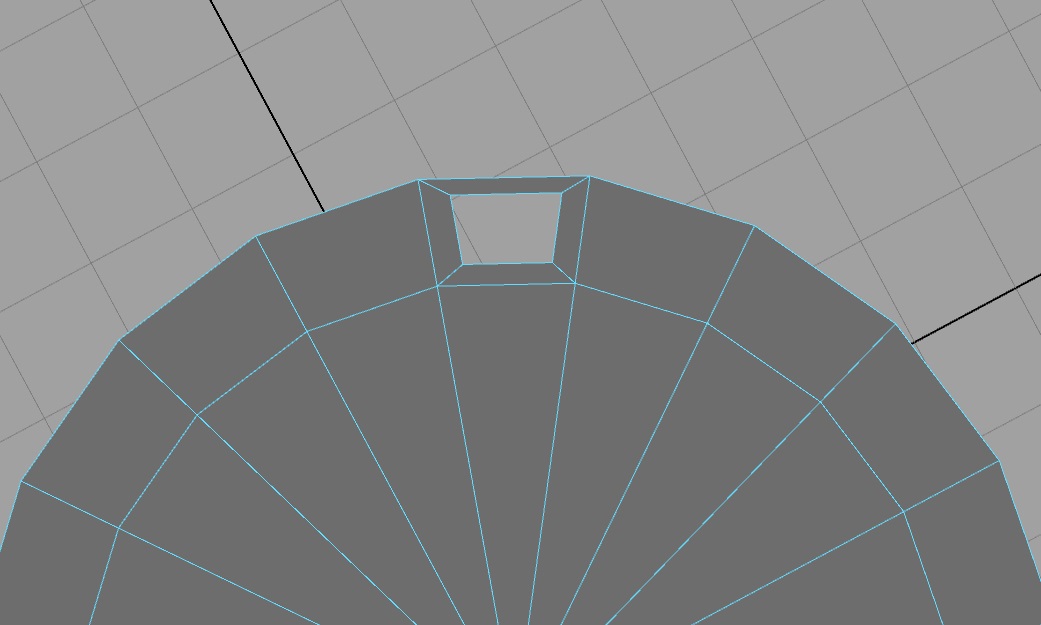

Add edges like this..............dave
Attached Thumbnails


Avatar Challenge Winner 2010

Quote
# 7 21-05-2013 , 05:30 PM
daverave's Avatar
The thin red line
Join Date: Aug 2009
Location: England
Posts: 4,472

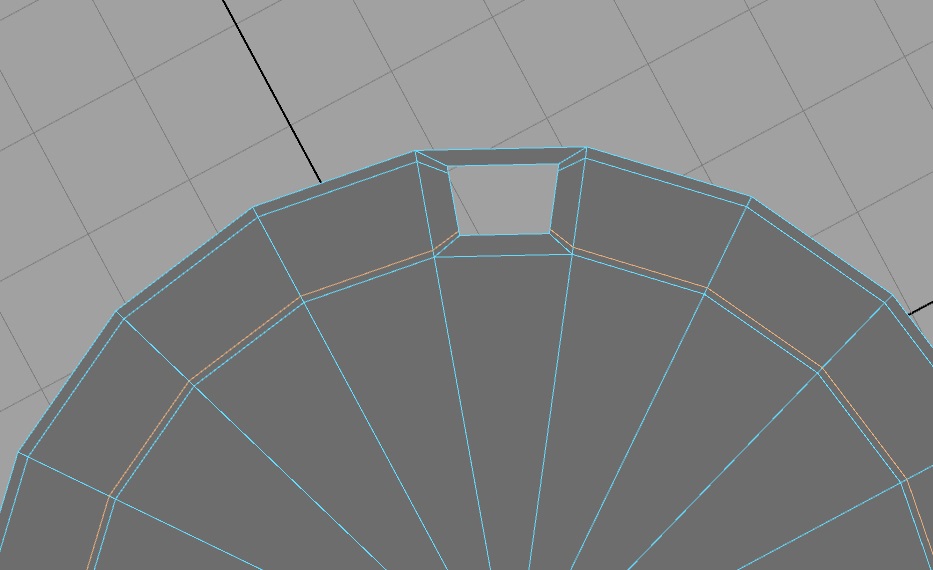

You can also cut it like this to get a tighter corner...............dave
Attached Thumbnails


Avatar Challenge Winner 2010

Quote
# 8 21-05-2013 , 06:51 PM
Sircharles's Avatar
Registered User
Join Date: Dec 2010
Location: Uk
Posts: 193
Thanks dave that seems to work.
