Referance pane issue 1st question

# 1 20-05-2006 , 06:47 PM

Subscriber
Join Date: May 2006

Location: manchester

Posts: 33

hello ive been looking at and bought a few trial vids to test out.

but ive tryed a few buttons and things i get same with mymy files at university and at home the images never seem map straight where as they do in the tutorials

im trying to follow the game polygon character tutorial and im foxed at the 1st turn!

assigning a bug character front side image to planes..

i can try and sourt it out with planner mapping but is there some other setting somewhere that might be causeing it to scew from the start?

ive reset most options changed to inches, even tryed all options in texture mapping in the option box of create plane.

any help there?

-----------I need to learn maya quickly!

Quote

# 2 20-05-2006 , 06:57 PM

Moderator
Join Date: May 2005

Location: Manchester Uk

Posts: 6,300

Whats the problem with the image plane?? How does it look?? How have you assigned the image (as an actual image plane or as a texture on a nurbs plane etc??)

Post an image as it will make it much easier to sort it out as its a bit confusing to what's going on.

Cheers

Quote

# 3 20-05-2006 , 07:41 PM

Subscriber
Join Date: May 2006

Location: manchester

Posts: 33

i created the erm "lambert" with the hypershader

middle drag lambert, double click it choose colour,file "find photoshop japeg file"
select plane middle drag lambert with image on to plane.

my plane is set to strech to fit as defualt i tryed other options to no text and keep aspect btu same issue..

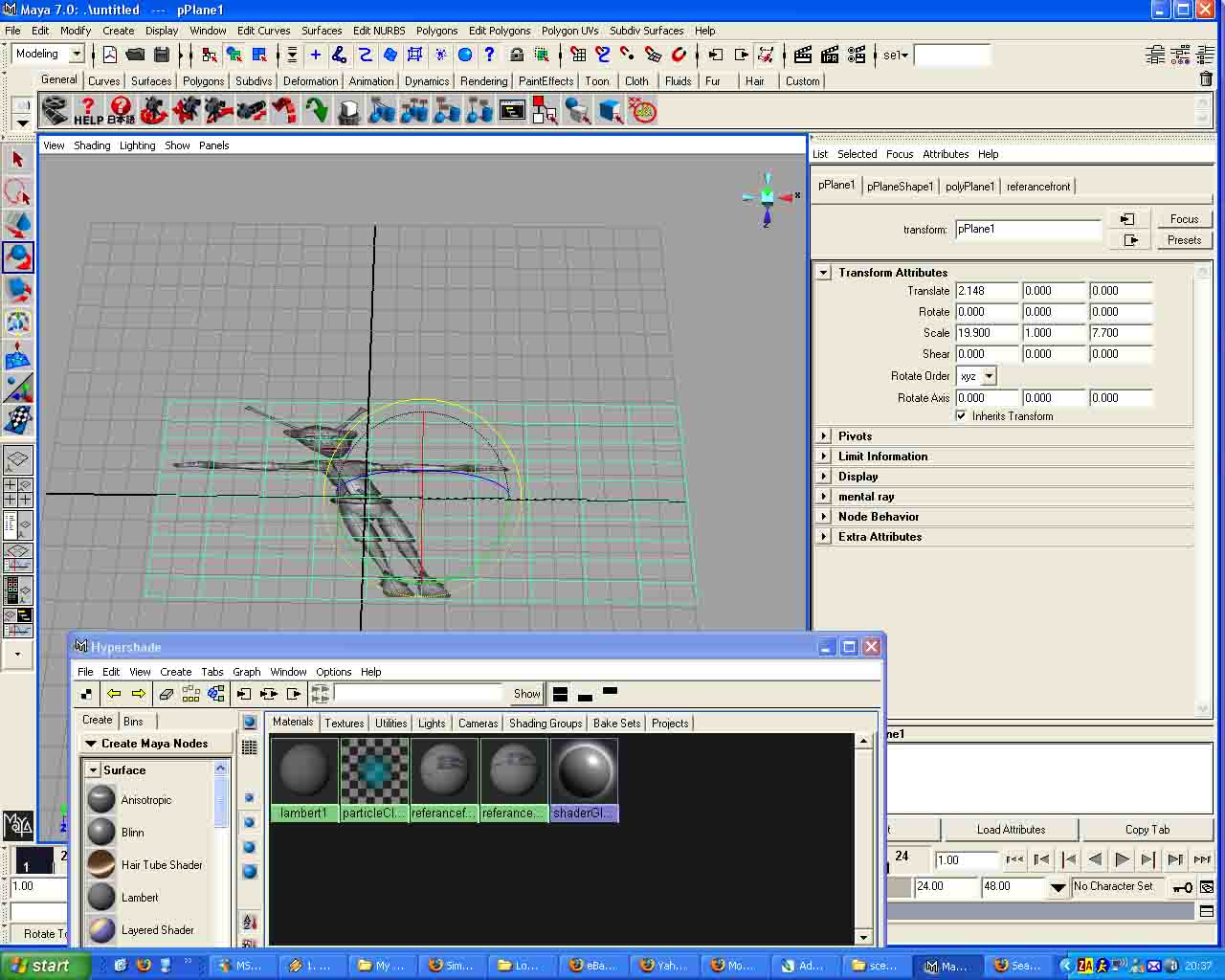

heres a pic of the scewed file

the planer maping and cylidrical mapping tools dont help much and as its scewed even just rotating the plane is not quite right..

Attached Thumbnails

Click image for larger version

Name: scewreferance.jpg
Views: 244
Size: 173.7 KB
ID: 28779

-----------I need to learn maya quickly!

Quote

# 4 20-05-2006 , 07:44 PM

Moderator
Join Date: May 2005

Location: Manchester Uk

Posts: 6,300

I think theres a bug in maya 7 that does that for some reason, you can go to alias's site and get the upgrade to 7.0.1 (or something like that, that should do the trick.

Cheers

Quote

# 5 20-05-2006 , 09:14 PM

Subscriber
Join Date: May 2006

Location: manchester

Posts: 33

just upgraded my version does nto seem to off changed im sure i saw a threed about this but can not find it any more,
any how above sceewing problem still remains..

-----------I need to learn maya quickly!

Quote

# 6 20-05-2006 , 09:38 PM

Moderator
Join Date: May 2005

Location: Manchester Uk

Posts: 6,300

dunno if this might help?

https://forums.creativecow.net/cgi-bi...856032&pview=t

Quote

# 7 20-05-2006 , 10:20 PM

Subscriber
Join Date: May 2006

Location: manchester

Posts: 33

ok guy there said:--"

I solved my problem by writing the following lines into my Maya.env file

MAYA_SLOW_DRAWPIXELS = 1;
MAYA_NON_POWER_TWO_OFF = 1;

It worked for me I hope it works for you" ----END

im just searchgin for that file i've found 2 in my documents

maya 7 and maya 7 ple or something along thouse lines...

is it justopen in word pad and copy and paste the lines??

-----------I need to learn maya quickly!

Quote

# 8 20-05-2006 , 10:24 PM

Moderator
Join Date: May 2005

Location: Manchester Uk

Posts: 6,300

yeah thats the one.

Quote

# 9 20-05-2006 , 10:24 PM

Subscriber
Join Date: May 2006

Location: manchester

Posts: 33

ok it worked i just opened both the files that where found in my doc/maya/ maya 7 or maya7ple added the lines

MAYA_SLOW_DRAWPIXELS = 1;
MAYA_NON_POWER_TWO_OFF = 1;

saved closed and reopend maya and it worked...

so don't know its its both or just the one file.....

thanks for the feed back!
