Old 18-07-2007, 12:26 AM   #1
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Question Modeling Help Needed

I created a polygon sphere and a cylinder, then i used the bollean tool (difference) to cut some portions of the sphere with cylinder. The edges on the sphere are now very sharp; how to bevel them.

My tries;

1. I selected the edges then beveled them and then smooth the surface (not working); whole model got weird

what else !!!!!

Please help!!!!
bilalbajwa2336 is offline   Reply With Quote
Old 18-07-2007, 01:59 AM   #2
Joopson
Registered User

Joopson's Avatar

Join Date: Jul 2005
Location: Los Angeles, CA
Posts: 2,313
Thanks: 1
Thanked 33 Times in 33 Posts
Default

before beveling you need to clear the history. i also usually triangulate the mesh, then quadrangulate it and clean it up. thats so every vertex has an edge.
__________________
Environment Artist @ Plastic Piranha
www.joopson.com
Joopson is offline   Reply With Quote
Old 18-07-2007, 02:22 AM   #3
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

.

Last edited by bilalbajwa2336 : 18-07-2007 at 03:16 AM.
bilalbajwa2336 is offline   Reply With Quote
Old 18-07-2007, 03:01 AM   #4
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

As i am new to maya. Please give me a little detail of what to do. Thanks for reply.
I have saved that scene; dont you think when we save a scene
history deletes automatically?

Here is the scene. I will be thankful to you if you try to bevel it and then teach me how to bevel this objects sharcp round edges. Thanks.
Attached Files
File Type: rar problem.rar (30.8 KB, 13 views)

Last edited by bilalbajwa2336 : 18-07-2007 at 03:15 AM.
bilalbajwa2336 is offline   Reply With Quote
Old 18-07-2007, 03:41 AM   #5
Joopson
Registered User

Joopson's Avatar

Join Date: Jul 2005
Location: Los Angeles, CA
Posts: 2,313
Thanks: 1
Thanked 33 Times in 33 Posts
Default

go to modify>delete all by type>history


than go to mesh>triangulate
then mesh>quadrangulate

then delete the history again.

now select the edges you wish to bevel and hit the bevel button
__________________
Environment Artist @ Plastic Piranha
www.joopson.com
Joopson is offline   Reply With Quote
Old 18-07-2007, 05:06 AM   #6
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I tried as you said but i am not getting even bevels on all edges.

Look at the model before i selected edges for beveling. How i clean up this model. Do you have any ideas for modeling it in any other way so that smoothing arc edges becomes easier for me.

Basically i am trying to model Alienware Xmorph WMP skin. Any modeling ideas or sujjestions thax. I am really thanful that you are helping me.
Attached Thumbnails
Click image for larger version

Name:	untitled.jpg
Views:	66
Size:	209.8 KB
ID:	35457
bilalbajwa2336 is offline   Reply With Quote
Old 18-07-2007, 05:08 AM   #7
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

This is what i want to model
Attached Thumbnails
Click image for larger version

Name:	preview.png
Views:	67
Size:	119.5 KB
ID:	35458
bilalbajwa2336 is offline   Reply With Quote
Old 18-07-2007, 09:27 AM   #8
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

if you look at the channel box, make sure you see the bevel is selected.., and you will see 'off set' play with those values to change the intensity of the bevel., it might look completely out of control when you hit 'bevel' but go for low numbers in the off set.., depending on world size.., try '.05' '.005' that low.., see how you go, look up close to see you got a bevel and if you have and need to increase the size of the bevel.., make those off set numbers larger
M

i dont worry about triangulation.., and I wouldn't use booleans on this.., Id just use sub-ds or better for you.., polys and use the faces, edges.., what ever.., delete what you dont need, extrude what you do need.., ect
__________________
take it easy and life will be easy

Last edited by mirek03 : 18-07-2007 at 09:31 AM.
mirek03 is offline   Reply With Quote
Old 18-07-2007, 06:18 PM   #9
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Is there Any special method for beveling an arc?

How to model an arc in a sub d cylinder?
bilalbajwa2336 is offline   Reply With Quote
Old 20-07-2007, 03:17 AM   #10
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

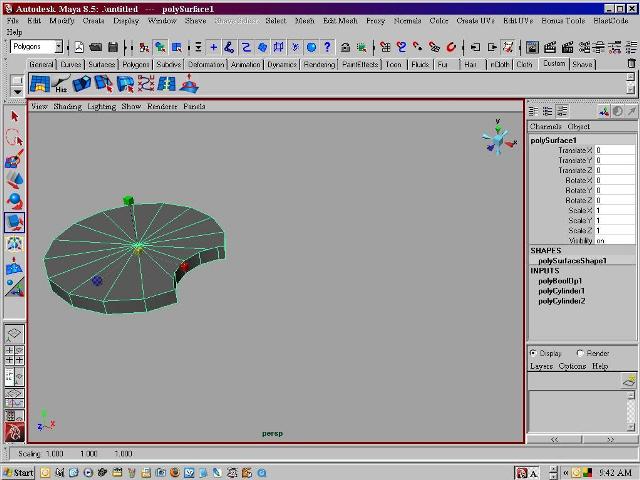

you were right the first time.., I tried a few differant things and boolean is the fastest.

once you have you object cut , right click to 'edge select' pick all the edges where you want to bevel, you might try icking one edge and the 'select contiguous edges' (whatever its called,) when you find it, put it on your custom shelf, it comes in handy

anyway

from here
Attached Thumbnails
Click image for larger version

Name:	dfs.jpg
Views:	37
Size:	54.5 KB
ID:	35488
__________________
take it easy and life will be easy
mirek03 is offline   Reply With Quote
Old 20-07-2007, 03:20 AM   #11
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

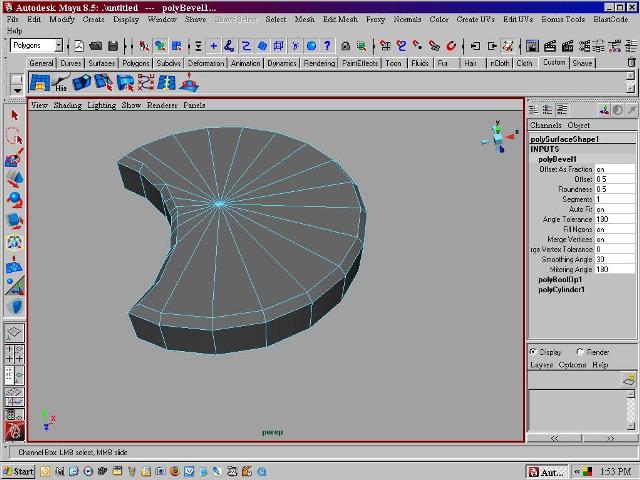

this is after i have click 'bevel' and in the channel box you can see the 'offset' is '.05' to make it more round add segments.., you can see where it is if you look at the channel box
Attached Thumbnails
Click image for larger version

Name:	egere.jpg
Views:	37
Size:	55.9 KB
ID:	35489
__________________
take it easy and life will be easy
mirek03 is offline   Reply With Quote
Old 20-07-2007, 01:34 PM   #12
bilalbajwa2336
Registered User

Join Date: Jun 2006
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks a lot. You really did it.

Can you please guide me step by step. (i am new to maya)

Thanks
bilalbajwa2336 is offline   Reply With Quote
Old 20-07-2007, 09:12 PM   #13
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

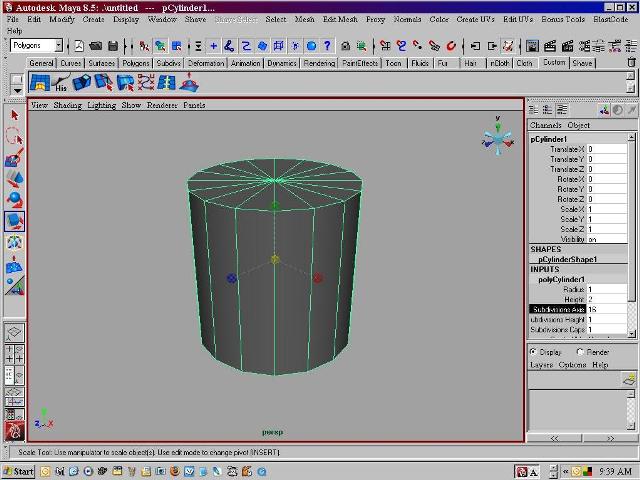

OK, you know how to start but from the top..
Attached Thumbnails
Click image for larger version

Name:	1.jpg
Views:	24
Size:	53.2 KB
ID:	35502
__________________
take it easy and life will be easy
mirek03 is offline   Reply With Quote
Old 20-07-2007, 09:13 PM   #14
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

and..,
Attached Thumbnails
Click image for larger version

Name:	4.jpg
Views:	21
Size:	49.5 KB
ID:	35505
__________________
take it easy and life will be easy
mirek03 is offline   Reply With Quote
Old 20-07-2007, 09:19 PM   #15
mirek03
Subscriber

mirek03's Avatar

Join Date: Feb 2006
Location: Australia
Posts: 2,752
Thanks: 0
Thanked 3 Times in 3 Posts
Default

and..,
Attached Thumbnails
Click image for larger version

Name:	4.jpg
Views:	23
Size:	49.5 KB
ID:	35506
__________________
take it easy and life will be easy
mirek03 is offline   Reply With Quote
