Question help on orange slice design

how do I design the basic shape of an orange slice? (leave the texture etc) i mean just a slice of a sphere. the only idea i have is reducing the history in the 'make sphere' panel. what about filling what is made? spheres are made empty in maya what about filling them?

:headbang:

Last edited by sifidis : 06-05-2009 at 09:30 PM.
sifidis is offline   Reply With Quote
Old 06-05-2009, 11:15 PM   #2
anasasis
Registered User

anasasis's Avatar

Join Date: Apr 2007
Location: Melbourne
Posts: 347
Thanks: 1
Thanked 1 Time in 1 Post
Default

i would make a poly sphere delete all the faces except for the ones to make up your segment, this will leave you with just the outside and an empty core like you said then using extrude edge and the append poly tool i would slowly fill it up their maybe and easier way around this maybe a tad faster but the results will be very similar
anasasis is offline   Reply With Quote
Old 07-05-2009, 12:40 AM   #3
sifidis
Registered User

Join Date: Oct 2008
Posts: 57
Thanks: 0
Thanked 1 Time in 1 Post
Default

i did what you said. i left just a quarter of a poly sphere, just like the outside of the slice and then selected the edges of one side, one by one so they made half a circle. the problem is when i extruded. it does close the gap somehow, but it makes a bump in the center and the line that is created is not aligned. i just extruded on one axis, being careful not to spoil the geometry. what is wrong? if it helps you, when i extrude it closes slowly not to a straight line but like a circle that is closing and with a bump on the front-back axis..

i also did the append poly tool. it just returned the scene to object mode. what is the purpose of that tool?

thanks in advance.
sifidis is offline   Reply With Quote
Old 07-05-2009, 05:20 AM   #4
anasasis
Registered User

anasasis's Avatar

Join Date: Apr 2007
Location: Melbourne
Posts: 347
Thanks: 1
Thanked 1 Time in 1 Post
Default

i dont really understand what you mean the append poly tool basically if you have three edges will fill in the remaining gap basically nothing you couldnt do with the extrude tool but a bit faster. Is it possible to upload a screen shot of what you have and i would be more then happy to follow this up
anasasis is offline   Reply With Quote
Old 07-05-2009, 05:30 AM   #5
anasasis
Registered User

anasasis's Avatar

Join Date: Apr 2007
Location: Melbourne
Posts: 347
Thanks: 1
Thanked 1 Time in 1 Post
Default

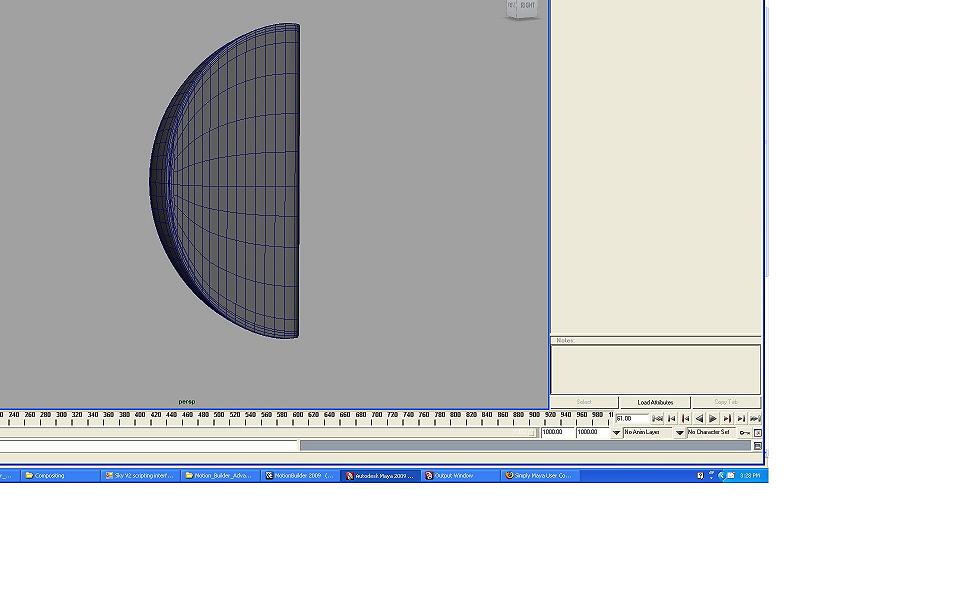

i quickly put this together with just going from the top to the bottom with an extrude like the image ill attach after
Attached Thumbnails
Click image for larger version

Name:	screen.jpg
Views:	88
Size:	46.2 KB
ID:	42129
anasasis is offline   Reply With Quote
Old 07-05-2009, 05:31 AM   #6
anasasis
Registered User

anasasis's Avatar

Join Date: Apr 2007
Location: Melbourne
Posts: 347
Thanks: 1
Thanked 1 Time in 1 Post
Default

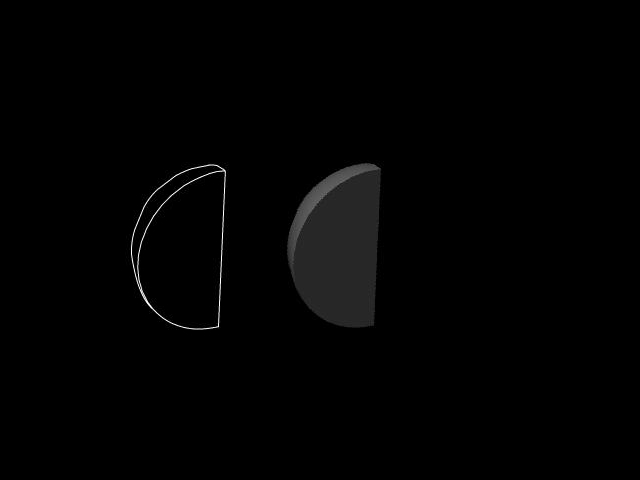

like this
Attached Thumbnails
Click image for larger version

Name:	screen2.jpg
Views:	93
Size:	66.9 KB
ID:	42130
anasasis is offline   Reply With Quote
Old 21-05-2009, 06:35 AM   #7
3ddon
Registered User

Join Date: May 2009
Posts: 153
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I'm trying 2 explain something..........
i attached the zip file which contains the screen captures(images)
1.take a poly sphere
2.then make a quarter by deleting d unnecessary faces
3.select d edges what i selected in d image
4.goto editmesh->bridge(divisions=0)
5.now select d edge loops n where we have to fill d holes(observe 5(1),5(2))
6.select d 2 edge loops n goto mesh->fill hole
7.then u got like this 7th image
8.i think d edge is not necessary,delete if u too feel like me(follow d image)
if u require continue the loops with split polygon tool,i think its not necessary
anyway 10x for watching

Last edited by 3ddon : 21-05-2009 at 06:23 PM.
3ddon is offline   Reply With Quote
Old 21-05-2009, 06:28 PM   #8
3ddon
Registered User

Join Date: May 2009
Posts: 153
Thanks: 0
Thanked 0 Times in 0 Posts
Default

hmmmmm,already i attached a zip file(which contained images),
but it not shows here,so i'm attaching again.........
3ddon is offline   Reply With Quote
Old 21-05-2009, 08:51 PM   #9
Gen
Moderator

Gen's Avatar

Join Date: Dec 2006
Location: South FL
Posts: 3,499
Thanks: 16
Thanked 645 Times in 567 Posts
Default

It's probably over the 200kb size limit :x
__________________
- Genny
__________________
::|| My CG Blog ||::
::|| My Maya FAQ ||::
Gen is offline   Reply With Quote
Old 22-05-2009, 12:33 AM   #10
lillsnopp
Registered User

lillsnopp's Avatar

Join Date: May 2009
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Just use Boolean.

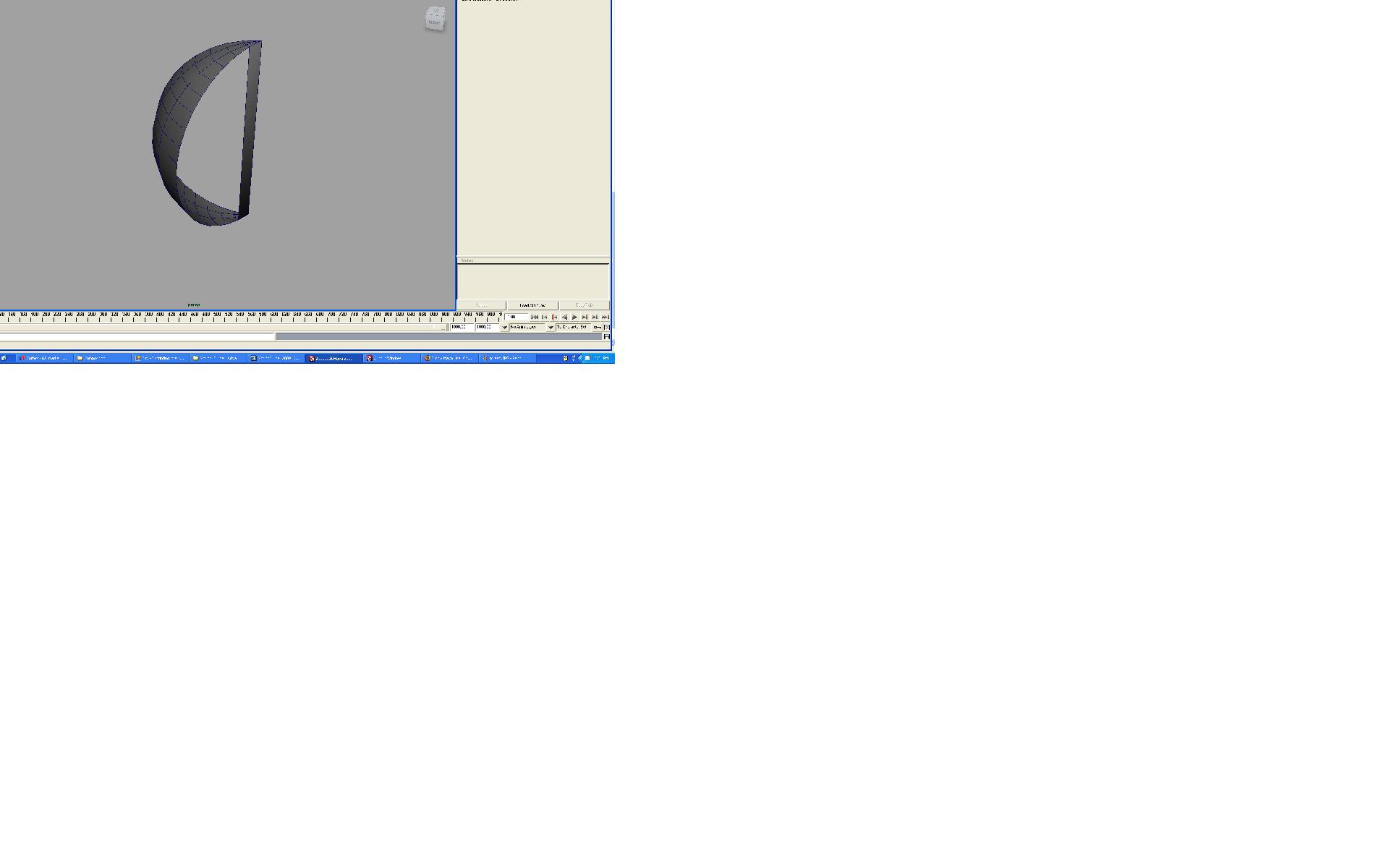

Example included took about 5 to 10 seconds to make, no real polygon difference (amount). And from there you can make it beautiful.

Cheerio
Attached Thumbnails
Click image for larger version

Name:	slizedone.jpg
Views:	51
Size:	16.0 KB
ID:	42238
lillsnopp is offline   Reply With Quote
Old 22-05-2009, 05:20 AM   #11
3ddon
Registered User

Join Date: May 2009
Posts: 153
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Quote:
Originally posted by lillsnopp
Just use Boolean.

Example included took about 5 to 10 seconds to make, no real polygon difference (amount). And from there you can make it beautiful.

Cheerio
__________________________________________________ __
nice,but with which shape u booleaned?
plz xplain clearly.........
3ddon is offline   Reply With Quote
Old 22-05-2009, 05:59 AM   #12
lillsnopp
Registered User

lillsnopp's Avatar

Join Date: May 2009
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Two cubes, union them in a suitable shape, Choose your sphere of choice (primary, white) and then your cubes (green, ie, secondary) and take Booleans DIFFERENCE.

And there you go. The absolout Quickest way I could think of, no doubt others can do better then me, but I wanted to help.

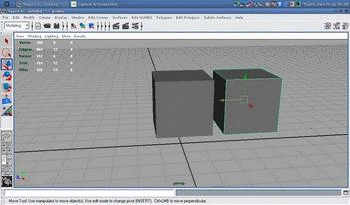

I included step by step ANIMATED GIF if I am just rambling incoherent here.

Hope that helps.
Attached Thumbnails
Click image for larger version

Name:	quicksolution.gif
Views:	48
Size:	227.9 KB
ID:	42239

Last edited by lillsnopp : 22-05-2009 at 06:06 AM.
lillsnopp is offline   Reply With Quote
