Merge Edge Tool

Hi!

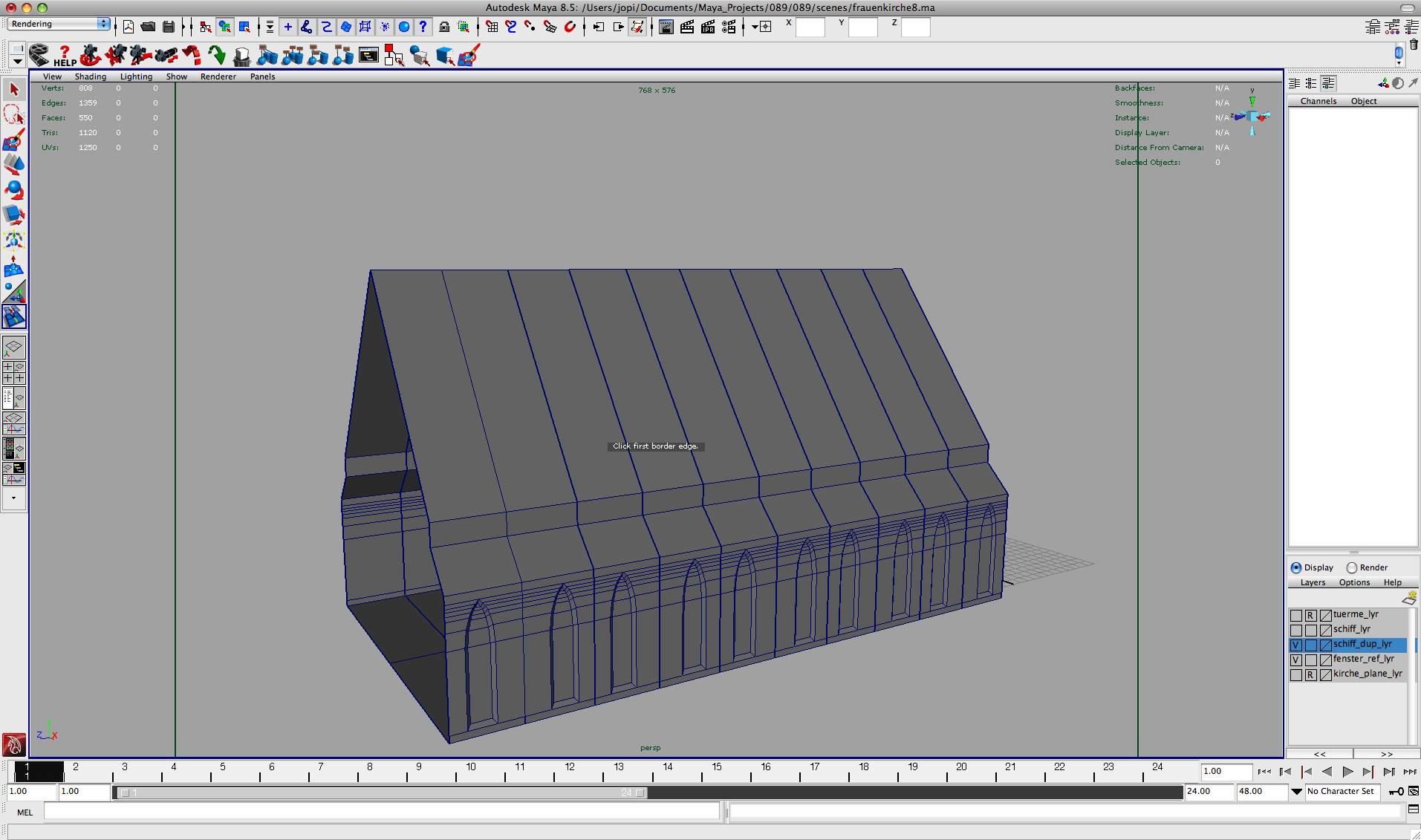

I have a church in my scene which consists of 10 pieces. I combined them but now I have to merge the edges. I used the merge edge tool until now but it is a lot of work to click every single edge a few times. Can I use the selecte edge loop tool and automatically merge them?

Greets, kimsay

Attached Thumbnails
# 2 04-09-2009 , 11:29 AM
honestdom's Avatar
The Nurb Herd
Join Date: Oct 2007
Location: London
Posts: 2,381
did you combine the pieces?

just select them all, combine, and then merge the verts.

# 3 04-09-2009 , 04:23 PM
EduSciVis-er
Join Date: Dec 2005
Location: Toronto
Posts: 3,374
I think if you double click on one of the edges, it should select the entire edge loop, so that should be faster than select each individual edge... alternatively, you could use a side view and drag a selection around the edges, the Ctrl-drag the ones you don't want... also, hit g to redo the last command (i.e. merge in your case) which might speed things up a bit too. Hope that helps.

# 4 04-09-2009 , 10:43 PM
Chirone's Avatar
Subscriber
Join Date: Dec 2007
Location: NZ
Posts: 3,125

Originally posted by stwert
I think if you double click on one of the edges, it should select the entire edge loop

that's a new feature with 09
you would do what hammer said, make sure everything is one mesh to start with then merge the verts rather than merge edges

in 8.5 on an apple you select two edges you want merged, hold apple right click and select edge loop utilities > to edge loop
then apple right click and select to verticies
then edit mesh > merge > []
set the threashold really low (and then just use the shelf button to merge verts in future)




that's a "Ch" pronounced as a "K"

Computer skills I should have:
Objective C, C#, Java, MEL. Python, C++, XML, JavaScript, XSLT, HTML, SQL, CSS, FXScript, Clips, SOAR, ActionScript, OpenGL, DirectX
Maya, XSI, Photoshop, AfterEffects, Motion, Illustrator, Flash, Swift3D
# 5 09-09-2009 , 06:50 AM
kimsay's Avatar
Registered User
Join Date: Feb 2008
Posts: 117
very cool! Thank you for your help guys!

Greets, kimsay

# 6 09-09-2009 , 09:16 AM
honestdom's Avatar
The Nurb Herd
Join Date: Oct 2007
Location: London
Posts: 2,381

Originally posted by Chirone
that's a new feature with 09

you can do that in 2008

# 7 09-09-2009 , 09:29 AM
Chirone's Avatar
Subscriber
Join Date: Dec 2007
Location: NZ
Posts: 3,125

Originally posted by hammer.horror
you can do that in 2008

no you can't
if you double click an edge in 2008 it just selects the single edge

double clicking an edge to select the edge loop is new to 2009
https://download.autodesk.com/us/maya...g_1024x768.mov




that's a "Ch" pronounced as a "K"

Computer skills I should have:
Objective C, C#, Java, MEL. Python, C++, XML, JavaScript, XSLT, HTML, SQL, CSS, FXScript, Clips, SOAR, ActionScript, OpenGL, DirectX
Maya, XSI, Photoshop, AfterEffects, Motion, Illustrator, Flash, Swift3D
# 8 09-09-2009 , 10:15 AM
honestdom's Avatar
The Nurb Herd
Join Date: Oct 2007
Location: London
Posts: 2,381
maya 2008... extension 2
