Question problems with circular fillet

hi
i'm trying to learn how to use nurbs
and currently having some problems with circular fillet.
so here is screenshots

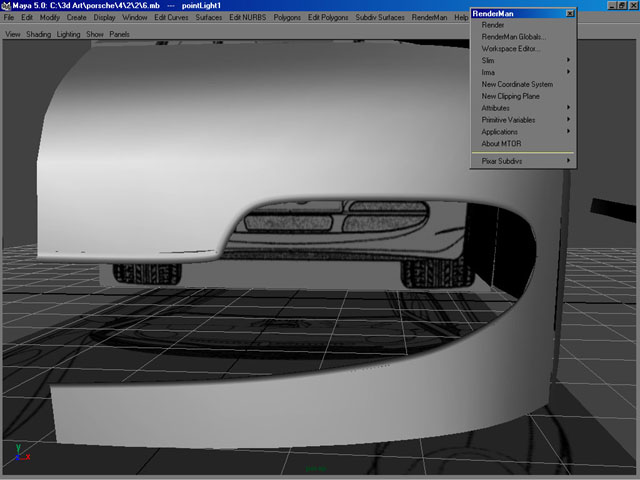

1) the beginning, just "car"
2)added "something"
3)using circular fillet ( options are also shown )

4)after trimming and deleting "something"
5)render

how can i get rid of seams?
Attached Thumbnails
Click image for larger version

Name:	1.gif
Views:	98
Size:	60.0 KB
ID:	13020

Last edited by someone13 : 03-02-2004 at 06:26 PM.
someone13 is offline   Reply With Quote
Old 03-02-2004, 06:28 PM   #2
someone13
Registered User

Join Date: Feb 2004
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

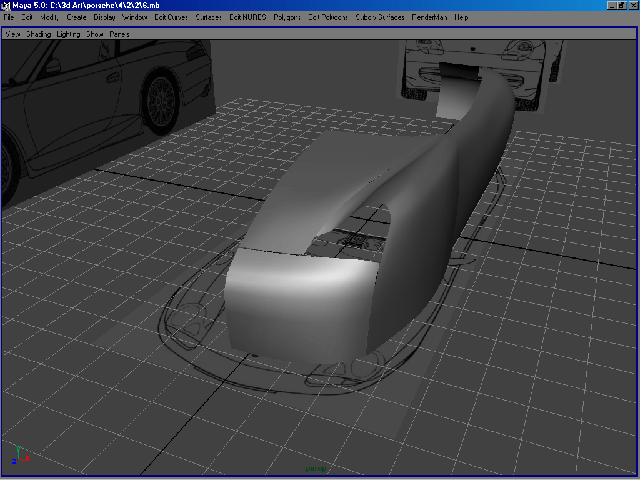

2)added "something"
Attached Thumbnails
Click image for larger version

Name:	2.jpg
Views:	94
Size:	75.9 KB
ID:	13021

Last edited by someone13 : 03-02-2004 at 06:32 PM.
someone13 is offline   Reply With Quote
Old 03-02-2004, 06:29 PM   #3
someone13
Registered User

Join Date: Feb 2004
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

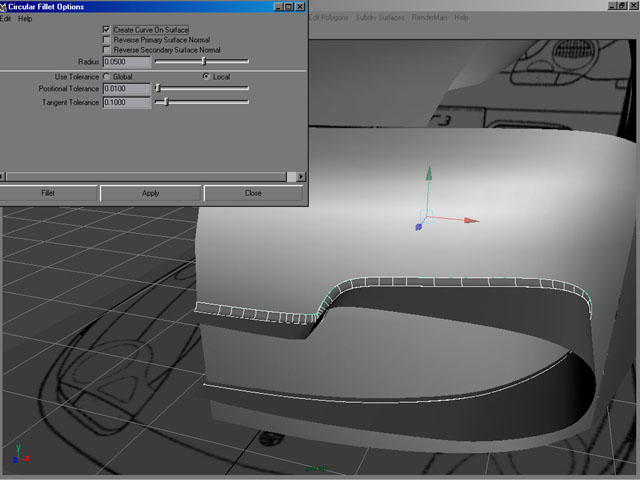

3)using circular fillet ( options are also shown )
Attached Thumbnails
Click image for larger version

Name:	3.jpg
Views:	93
Size:	55.9 KB
ID:	13022

Last edited by someone13 : 03-02-2004 at 06:33 PM.
someone13 is offline   Reply With Quote
Old 03-02-2004, 06:30 PM   #4
someone13
Registered User

Join Date: Feb 2004
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

4)after trimming
and deleting "something"
Attached Thumbnails
Click image for larger version

Name:	4.jpg
Views:	94
Size:	59.6 KB
ID:	13023

Last edited by someone13 : 03-02-2004 at 06:33 PM.
someone13 is offline   Reply With Quote
Old 03-02-2004, 06:31 PM   #5
someone13
Registered User

Join Date: Feb 2004
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

5)render

how can i get rid of seams?
Attached Thumbnails
Click image for larger version

Name:	5.jpg
Views:	92
Size:	25.8 KB
ID:	13024

Last edited by someone13 : 03-02-2004 at 06:34 PM.
someone13 is offline   Reply With Quote
Old 04-02-2004, 08:44 AM   #6
bastiaanwormgoor
Registered User

Join Date: Mar 2003
Location: Holland
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
Default

yo dude, that's easy! click on your bumper the big thing with the whole in it and go to it's attribute editor (ctr + a) and go to tesselation settings and click 'display tesselation' or something not sure.. I don't have maya on this computer!.. and ow yeah set it to highest value...!
layter
__________________
------------------------------------------------
...addict...but luckely for me it's Maya!
------------------------------------------------
bastiaanwormgoor is offline   Reply With Quote
Old 04-02-2004, 08:45 AM   #7
bastiaanwormgoor
Registered User

Join Date: Mar 2003
Location: Holland
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
Default

hmm.. and I think you did the circullar fillet on the wrong side.. the should point inward.. or is it me?
__________________
------------------------------------------------
...addict...but luckely for me it's Maya!
------------------------------------------------
bastiaanwormgoor is offline   Reply With Quote
Old 20-02-2004, 01:44 AM   #8
flib
Registered User

flib's Avatar

Join Date: Feb 2004
Location: England
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I also am wondering how to fix this, I tried what bastiaanwormgoor said, and it fixes it a little but the cracks are still noticeable although not now as big.
flib is offline   Reply With Quote
Old 20-02-2004, 07:22 PM   #9
DgAPc
Subscriber

Join Date: Dec 2002
Posts: 123
Thanks: 0
Thanked 1 Time in 1 Post
Default

The best way I do it and its worked for me everytime so far is go under Nurbs and select "Extend Surfaces". I would play with the settings a little. What it does it extend's the end of the edge. I usually go with .1 and keep extending till theres no seem. Hope that helps.
DgAPc is offline   Reply With Quote
