How do I convert a closed curve into a nurbs surface??

# 1 08-11-2004 , 12:27 AM

Registered User
Join Date: Nov 2004

Posts: 27

How do I convert a closed curve into a nurbs surface??

I've created a free form surface using a CV/EP Curve and I've closed it.

I now want to change it to a surface so that I can punch a hole into it and then loft it.

Can anyone tell me how to do this.....if it's possible? Thanks :-)

Quote

# 2 08-11-2004 , 06:56 AM

Registered User
Join Date: Jun 2004

Location: Gothenburg, Sweden

Posts: 1,318

surfaces/planar

Quote

# 3 10-11-2004 , 11:08 AM

Registered User
Join Date: Nov 2004

Posts: 27

Hi.
Thanks for that.

I'm now wondering how I can change the number of U and V lines on the plane that I've created when I changed the closed curve planar surface.

It has automatically given me 3 lines in the x and y direction. How do I change this?

I tried doing it in the attribute window with no success, then I tried Edit Nurbs>Rebuild, again with no success.

Any ideas?

I'm pretty new to Maya, and although I'm fluent in 3d modelling in 3d architectural programs, I have to admit that Maya is confusing me with the endless amount of of ways and options you can edit/transform create a surface/object.

I have to admit that it is a brilliant program though!!

Quote

# 4 10-11-2004 , 12:26 PM

Subscriber
Join Date: Sep 2003

Location: Harwich, UK

Posts: 1,195

You could try rebuilding the curves that you used to creat the surface.

Edit Curves ---> Rebuild Cuves

Tell me if that works

"You can live for yourself today -- or help build tomorrow for everyone" _LIVID

Optical Minefield
My Blog

Quote

# 5 10-11-2004 , 01:43 PM

Registered User
Join Date: Nov 2004

Posts: 27

Editing planar surfaces/curves

I tried editing the curve first before changing it to a planar surface, but it was no go.

I then changed it to a planar surface and tried rebuilding the curve, but the only thing I could do was increase the number of spans.

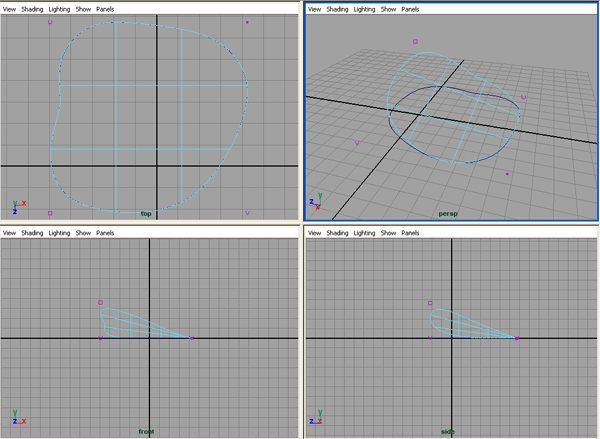

No matter what way I try to edit it, there are always at least 3 lines going in the x and y axis.........and another puzzling thing is.......

I tried to see if I could manipulate the CV's where these lines cross (in component mode) but it shows the plane as only have 4 points around the perimeter of the plane.

Attached Thumbnails

Click image for larger version

Name: 3.jpg
Views: 3684
Size: 169.6 KB
ID: 18364

Quote

# 6 10-11-2004 , 02:26 PM

The Maya Mountain
Join Date: Aug 2002

Location: Seattle, WA

Posts: 8,245

That's because it's actually a plane. Using a Planar function just trims the shape out of a square surface.

In my opinion, and I've said this a lot, I know... you'd have better luck with polygons. user added image

-Mike
The Maya Toolbelt

Quote

# 7 10-11-2004 , 04:15 PM

Subscriber
Join Date: Jun 2003

Location: stuck in the 90's boston, USA

Posts: 1,871

Originally posted by mtmckinley

you'd have better luck with polygons.

Originally Posted by

Your new Motto mike user added image

Image dump

Quote

# 8 10-11-2004 , 04:21 PM

The Maya Mountain
Join Date: Aug 2002

Location: Seattle, WA

Posts: 8,245

Good idea. user added image

-Mike
The Maya Toolbelt

Quote

# 9 11-11-2004 , 04:25 PM

Subscriber
Join Date: Nov 2002

Location: Made in Spain

Posts: 422

You could try breaking up the curve in 4 pieces and then use the birail function to create a surface out of it. You will be able to do a lot more with that surface. Before using birail rebuild curves so that opposite curves have the same parametirization.

Quote
