Old 26-06-2007, 06:21 AM   #1
oompa_l
Registered User

Join Date: Jun 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default help extruding along path

hi. im new to maya.

I am looking to extrude a profile shape along a path as one might describe that volume that a switchback fire stair might occupy - for example it must main constant sectional dimensions, and I would like for it to have square edges.

I have tried two different routes to get what I am looking for and neither one quite works. FIrst, I tried extruding along a path. While the extusion is close, i am finding that the section is slowly rotating along the path's length. I dont know how to get it to stop doing that.

The other route I tried was to attach the section shape to the path as a motion shape, and then creating an animated sweep. This one works excepts for the corners in plan. When the path turns a corner, I get a step before the corner and after the corner, and ultimately a chamfer between either edge. I have tweaked all the settings I can find to try and force a step immediately at the corner, but I havent figured it out. Even if I were to get one, I am not sure that it would understand how to deal with the sections immediately before and after.

what I am looking for is similar to the sweep command in 3d studio max....but in maya.

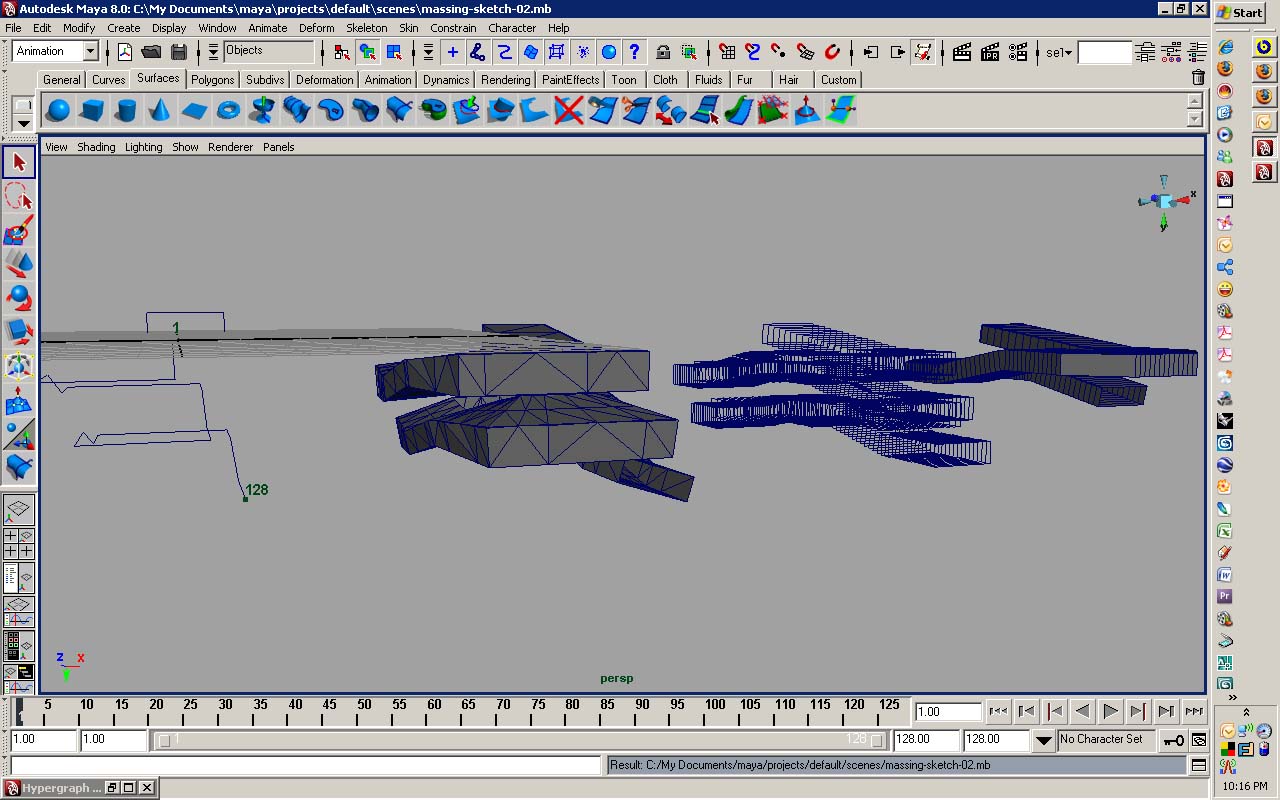

see attached screengrab to decipher what I am describing.

thanks in advance
Attached Thumbnails
Click image for larger version

Name:	screengrab-01.jpg
Views:	31
Size:	170.0 KB
ID:	35102
oompa_l is offline   Reply With Quote
