Shader problem on double-folding of paper

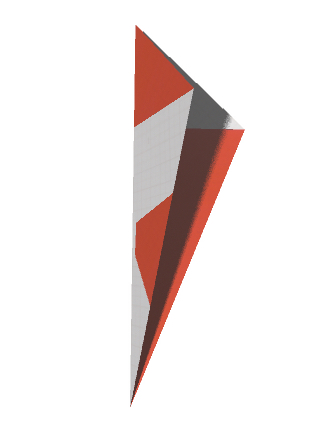

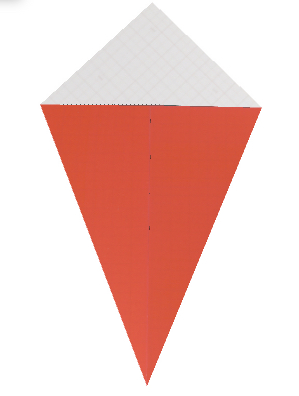

I am trying to simulate a paper folding (1st photo) using cluster deformer and I was able to make a kite base (2nd photo) with no problem. Everything works fine up to this point (I am using double side shaders). Here I only fold the paper by 179 degrees rotation in order to avoid the overlapping. Also edges are all hardened.

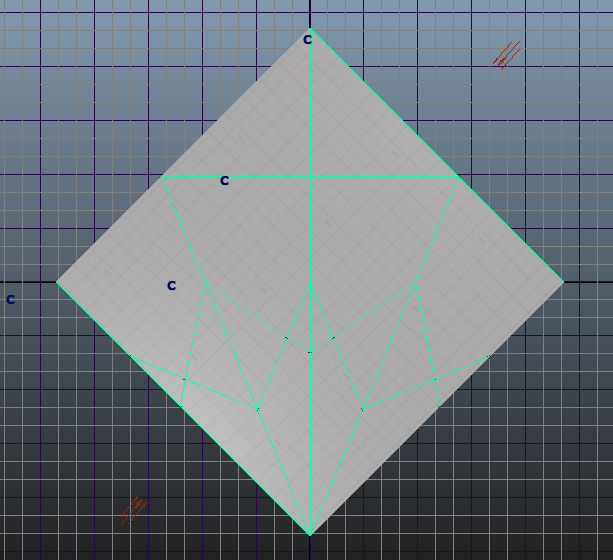

Then I was trying to fold the base in half vertically and I noticed that the front sided shader smeared into the back (3rd photo). I was experimenting with 1st fold rotation between 179 and 179.9 degrees and the results are the same.

If you have experienced this kind of problem, I would appreciate your comments. Thank

Attached Thumbnails
Attached Images
# 2 19-10-2014 , 09:49 AM
daverave's Avatar
The thin red line
Join Date: Aug 2009
Location: England
Posts: 4,472
I think your problem is you need to delete history and freeze transformation before you add the clusters...................dave




Avatar Challenge Winner 2010
# 3 20-10-2014 , 05:45 AM
Registered User
Join Date: Oct 2014
Posts: 18

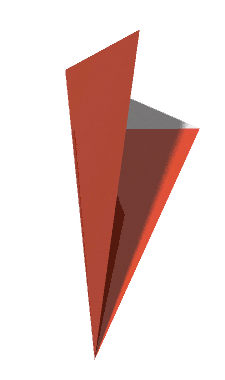

I tried to delete history and freeze transformation. It doesn't help. I got the same result.

What I found from my investigation on this issue is that it works fine when I make a rotation of 89 degrees.

But when I increased the rotation angle by 1 degree, i.e, 90 degrees, then the problem occurs.

Attached Images

Last edited by muonium; 20-10-2014 at 05:52 AM.
# 4 20-10-2014 , 06:39 AM
daverave's Avatar
The thin red line
Join Date: Aug 2009
Location: England
Posts: 4,472
How are you creating your texture................dave




Avatar Challenge Winner 2010
# 5 22-10-2014 , 05:52 AM
Registered User
Join Date: Oct 2014
Posts: 18

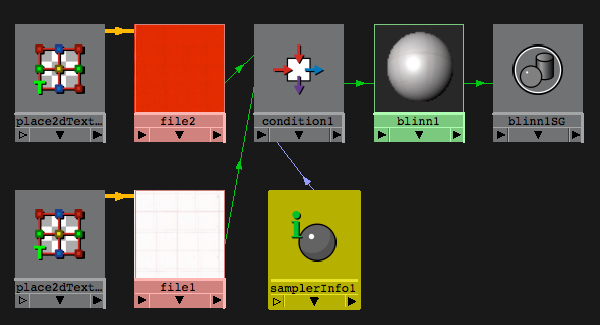

I am creating texture using two files for the front and back sides.

The problem is finally solved by relying on skeleton method.

It seems that there is a bug on cluster deformer.

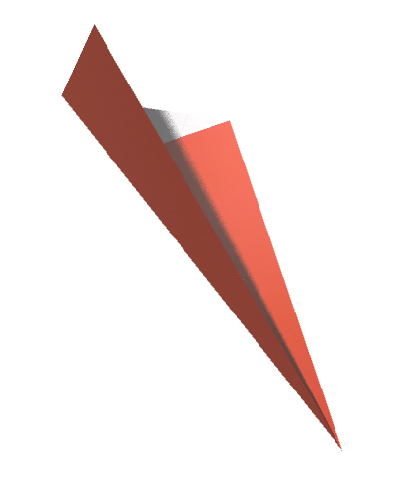

I made a change on the kite base so that there is enough gap between two layers (i.e., I made 178 degrees rotation).

This doesn't help. The cluster deformer gives the same result. It is very disappointing.

Attached Thumbnails
Attached Images
