Default Need a little guidance on my female character

Just doing some mirror and smooth tests to see how things are lining up on my model as this is my first attempt at character modeling. I'm worried about the mesh around the arm (see attached pic) and the way it's bunching up. Also concerned with the best way to model breasts. If someone can shoot some tips my way, that'd be great. I've attached a few screens for ya to see.
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 15-04-2003, 03:36 AM   #2
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

Another shot...smoothed figure (seam in the center).
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 15-04-2003, 03:37 AM   #3
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

Current working version (no smooth, no mirror, no breasts or definition)....i need to fix the arm area seen in the first screen as well as define the muscles of one side.
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 15-04-2003, 08:00 AM   #4
kbrown
Moderator

kbrown's Avatar

Join Date: Sep 2002
Location: London, UK
Posts: 3,198
Thanks: 0
Thanked 8 Times in 8 Posts
Default

Can you take a close-up of the arm area from the low-poly version? Can't see it properly from this angle but it seems that you need to do some more poly splitting...

Great start btw!
__________________
Kari
- My Website
- My IMDB

Do a lot, Fail a lot and Learn a lot!
kbrown is offline   Reply With Quote
Old 15-04-2003, 01:07 PM   #5
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

KB,

Here are shots of two sides of the arm area. If you're still having trouble checking it out, let me know and I'll email the scene file to you. There are gaps I still have to take care of between vertices when the arm is attached.

Also, with regards to the breasts, would I just split polys into a circular shape and extrude?

Pete
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 15-04-2003, 01:32 PM   #6
kbrown
Moderator

kbrown's Avatar

Join Date: Sep 2002
Location: London, UK
Posts: 3,198
Thanks: 0
Thanked 8 Times in 8 Posts
Default

Ok, I'm in a hurry so I don't have time to check this properly but anyway here are some tips.

Combine the arms with the torso if they aren't already. Split along the red lines like in the pic below. Snap-move and merge the vertices circled with yellow...

Bottom line: You should try to maintain quads. It helps a lot in the long run...

Lemme know if you still have problems and I'll check back later when I have more time...
__________________
Kari
- My Website
- My IMDB

Do a lot, Fail a lot and Learn a lot!
kbrown is offline   Reply With Quote
Old 06-09-2003, 09:50 PM   #7
otaku
Registered User

otaku's Avatar

Join Date: May 2003
Location: Switzerland
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
Default oh yeah same problem i had.. this is exactly what i didn t know

oh yeah same problem i had.. this is exactly what i didn t know

cool thx!

but... it want not let connect?

i put exactly with snap point the vertexes togeter arms was one shape and body was.

i was combine body with arms...
and i tried also without combine both...

its doing something but afther vertexes of body and arms still are not merge into one....

i have picture with market vertexes of both shades and thes are selected,,,

what the heck im doing wrong...?

do you did it well
NitroLiq? how you did it finally?


thx for helping
Attached Thumbnails
Click image for larger version

Name:	connect_two_polyobjects.jpg
Views:	100
Size:	326.2 KB
ID:	10391
__________________
http://lab.palindrom.ch
http://www.achermann.cc
: daijobe desu :
otaku is offline   Reply With Quote
Old 07-09-2003, 12:58 AM   #8
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

Did you merge the vertices (Edit Polygons --> Merge Vertices) after combining and snapping? It's been awhile but I think what I did was a combine to make the body and arm one object. Next, I used the split poly tool on the body to match where I wanted to attach the arm and deleted to make a hole. Then, I snapped verts on the arm and snapped them to the matched verts on the body. Finally, I just drag selected over each pair of verts and merged vertices.

Hope this helps.
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 07-09-2003, 02:14 AM   #9
adldesigner
Registered User

adldesigner's Avatar

Join Date: Sep 2002
Location: CCS, Venezuela
Posts: 3,363
Thanks: 0
Thanked 9 Times in 9 Posts
Default

Might want to be carefull about the placement of the vertices buddy.

Right now it feels (In the legs for example) very tube like*. As if you only scaled the verts down a bit. Try to place them to match anatomical features (Such as the muscles and the knees). That should liven up a lot the model.

*As if itīs just a cilinder .. with varying thickness.
__________________
adldesigner
Caracas, Venezuela
Hell .. not gone perse, but with a certainly lower post count per day.

adldesigner is offline   Reply With Quote
Old 07-09-2003, 04:07 AM   #10
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

Which model are you talking about, Al? Mine or Otaku's?
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 07-09-2003, 09:18 AM   #11
adldesigner
Registered User

adldesigner's Avatar

Join Date: Sep 2002
Location: CCS, Venezuela
Posts: 3,363
Thanks: 0
Thanked 9 Times in 9 Posts
Default

Yours buddy.
__________________
adldesigner
Caracas, Venezuela
Hell .. not gone perse, but with a certainly lower post count per day.

adldesigner is offline   Reply With Quote
Old 07-09-2003, 12:31 PM   #12
NitroLiq
Moderator

NitroLiq's Avatar

Join Date: Nov 2002
Location: New York
Posts: 2,133
Thanks: 0
Thanked 10 Times in 9 Posts
Default

Ah, no worries, then. I originally posted my question a long time ago and otaku must've come across it recently browsing/searching the forum. I hadn't really started defining musculature other than basic shapes, yet. Was just roughing out one side of the model. Poor girl...she's been lying dormant in a folder for months and months now waiting for me to get back to work on her.
__________________
"Terminat Bora Diem, Terminal Auctor opus."
NitroLiq is offline   Reply With Quote
Old 12-09-2003, 08:04 AM   #13
3dgurl
Subscriber

3dgurl's Avatar

Join Date: Aug 2003
Location: California
Posts: 164
Thanks: 0
Thanked 3 Times in 3 Posts
Default

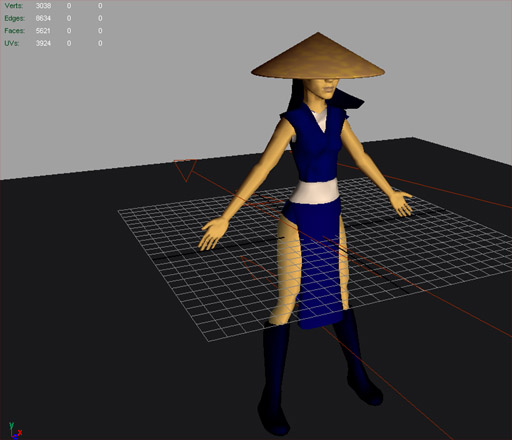

jebus everyone uses that pic LOL i used it as the base for one of my chars lol
Attached Thumbnails
Click image for larger version

Name:	wack.jpg
Views:	65
Size:	54.7 KB
ID:	10499
__________________
