# 1 28-08-2005 , 04:46 PM
stylish_chemist's Avatar
Registered User
Join Date: Mar 2005
Location: England
Posts: 70

Blend shape elp please!

I am in the middle of rigging a characters face, i have encountered a problem when it comes to applying blendshapes user added image

I have 3 head shapes as in the picture below, the one on the left is tthe one i am rigging, i have painted all skin weights on him and i have a slider to open/close his mouth and it looks pretty good. However when i come to apply a blend shape for the OOh or smile shape faces whn the blend shape value increases, the rigging head moves either up and down or left and right I can't understand why this would happen. I have tried deleting history on the main face and re-rigging it but the problem still arises

I tried setting a blend shape between the other two heads, and it works fine! which is really annoying! i just can't get the blend shape to the rigged head working properly without the head moving to a different location

PLEASE help!!!! been bugging me all day!!:headbang: :headbang: :headbang: :headbang:

Attached Thumbnails

Professional Noob

MSN me
# 2 28-08-2005 , 04:53 PM
stylish_chemist's Avatar
Registered User
Join Date: Mar 2005
Location: England
Posts: 70

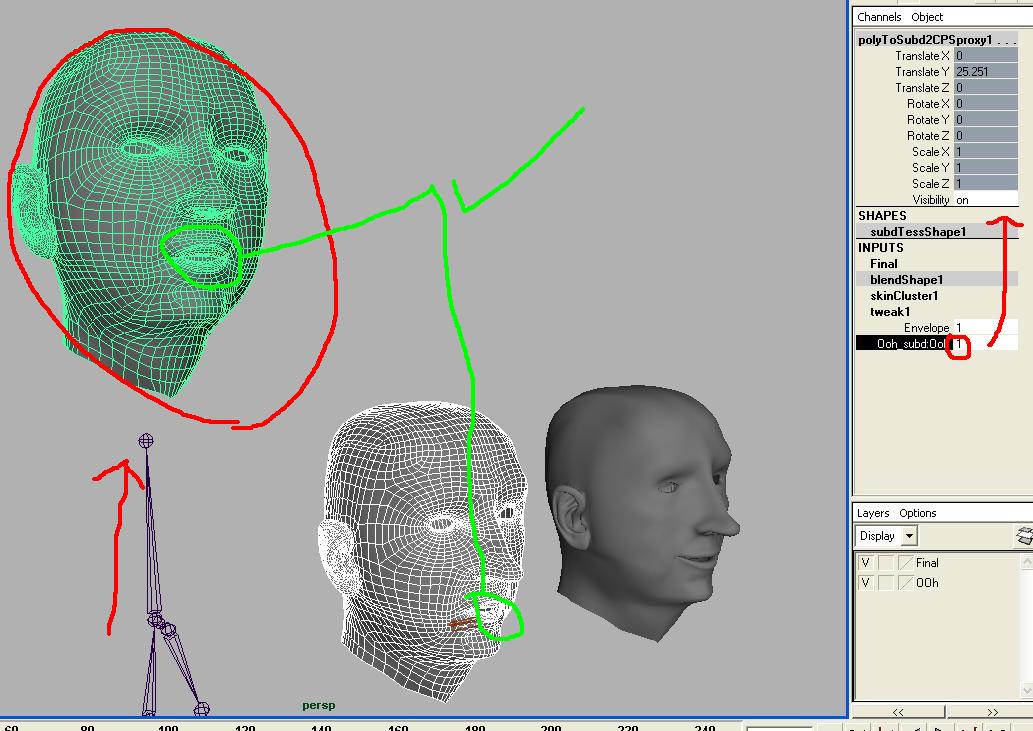

heres a picture of the problem, the blenshape works, but the head moves as well user added image

Attached Thumbnails

Professional Noob

MSN me
# 3 03-09-2005 , 07:15 PM
Jay's Avatar
Lead Modeler - Framestore
Join Date: Feb 2003
Location: UK
Posts: 6,287
Its because the head is bound to the skin so you are getting a double transformation. Do the blend shapes first then apply the bind, if you are using smooth skin, which I hope you are in this case then save out the weight map then you can just load it in after to save re painting weights after.

Cheers
Jay

# 4 03-09-2005 , 07:17 PM
Jay's Avatar
Lead Modeler - Framestore
Join Date: Feb 2003
Location: UK
Posts: 6,287
If the problem still persists send me the scene.

Jay

# 5 04-09-2005 , 12:16 AM
vladimirjp's Avatar
Subscriber
Join Date: Jun 2003
Location: stuck in the 90's boston, USA
Posts: 1,871
dont freeze transform on your blendshapes.
