Old 31-05-2006, 05:30 PM   #1
Triskelion
Registered User

Triskelion's Avatar

Join Date: May 2006
Location: Bath, England
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
Default Using curves to create 3D

Hi,

I am trying to make a logo 3D.
I have put an image of it on the image plane and traced the edges with the EP curve tool.

How do I now make it 3D??
i.e. Add surfaces to it?

Thanks,

Very Stuck!
Attached Thumbnails
Click image for larger version

Name:	logo.jpg
Views:	46
Size:	16.0 KB
ID:	28983
__________________
Knowledge is knowing a tomato is a fruit; Wisdom is not putting
it in fruit salad.
Triskelion is offline   Reply With Quote
Old 31-05-2006, 05:49 PM   #2
pbman
Subscriber

pbman's Avatar

Join Date: Mar 2005
Location: London
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Default

lots of options
1) duplicate and move up to desired height and loft between each set of 2 cures

2)use bevel plus tool and tweak with the settings
__________________
Now at SMU doing BSc 3D Computer Animation so its hard to get on here
My wire render tut http://forum.simplymaya.com/showthre...threadid=20973
pbman is offline   Reply With Quote
Old 31-05-2006, 05:56 PM   #3
Triskelion
Registered User

Triskelion's Avatar

Join Date: May 2006
Location: Bath, England
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
Default Thanks

Hi,

Thanks for your reply.

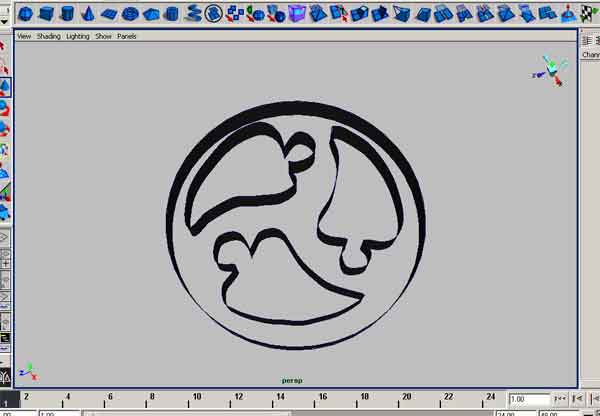

The loft worked but now I need to somehow create a surface.
See attached Images.

Thanks.





Trying to get this-
Attached Thumbnails
Click image for larger version

Name:	triskelion logo.jpg
Views:	40
Size:	43.3 KB
ID:	28985
__________________
Knowledge is knowing a tomato is a fruit; Wisdom is not putting
it in fruit salad.
Triskelion is offline   Reply With Quote
Old 31-05-2006, 05:58 PM   #4
Triskelion
Registered User

Triskelion's Avatar

Join Date: May 2006
Location: Bath, England
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
Default

From this:-

(minus the writing)
Attached Thumbnails
Click image for larger version

Name:	logo.jpg
Views:	39
Size:	17.0 KB
ID:	28986
__________________
Knowledge is knowing a tomato is a fruit; Wisdom is not putting
it in fruit salad.
Triskelion is offline   Reply With Quote
Old 31-05-2006, 06:56 PM   #5
pbman
Subscriber

pbman's Avatar

Join Date: Mar 2005
Location: London
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Default

ERMM CANT REMEM OFF THE TOP OF MY HEAD

select the outside curve then all the urves inside - the do a planar operation (surfaces -> planar)
then do same for the bottom now u should have a top and ottom in 2 operations good luck
__________________
Now at SMU doing BSc 3D Computer Animation so its hard to get on here
My wire render tut http://forum.simplymaya.com/showthre...threadid=20973
pbman is offline   Reply With Quote
