SimplyMaya Forums

Welcome to the forum, feel free to ask questions here.

Home / forum / Lounges / Maya Basics & Newbie Lounge / video into maya as texture, Please help
Register FAQ Members List Calendar Mark Forums Read

New Thread

Thread Tools
Old 08-10-2008, 09:18 PM   #1
dubai3d
Registered User

Join Date: May 2008
Posts: 245
Thanks: 0
Thanked 35 Times in 33 Posts
Default video into maya as texture, Please help

hi every maya users

I am trying to import video into maya scene on this sphere ,
I have 2 video of 30 sec , I would like to apply the video into this faces as texture, so when the sphere rotate(animation) the video plays as well,
could you please guid me what is the best way, I went through all the forums around regarding video into maya, but still I need your help.

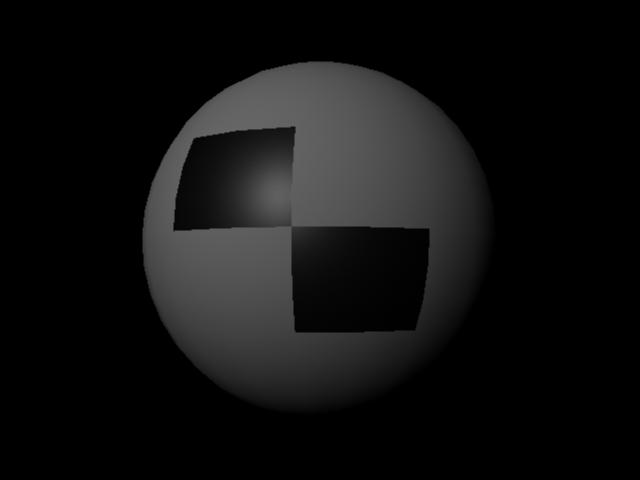

here is the image that explain what really i need.
Attached Thumbnails
Click image for larger version

Name:	video-into-maya.jpg
Views:	79
Size:	51.2 KB
ID:	40424
dubai3d is offline   Reply With Quote
Old 08-10-2008, 09:29 PM   #2
Falott
Registered User

Falott's Avatar

Join Date: Jan 2005
Location: vienna
Posts: 1,095
Thanks: 3
Thanked 20 Times in 18 Posts
Default

easy.

layout UVs for both of the faceGroups. maybe use planar projection with "Best Plane" checked in the optionsbox. then assign a different shader to each faceGroup. in the shader map Color with the first file of your image sequence. I donīt know if maya plays complete films like avi etc. but if not use a image sequences of PNG, Targa, or even JPG maybe.

for maya showing Image Sequences there is a very specific naming convention for the imageFiles. AVOID! -> [_] (underscores) and use [.] (points) like filename.number.extension
otherwise maya canīt read them properly and just shows black space.


It took me quite some time myself to find out XD, because I am used to underscores usually.

in the file texture node click Image Sequence instead of image.

render

done
__________________
everything starts and ends in the right place at the right time.

Last edited by Falott : 08-10-2008 at 09:32 PM.
Falott is offline   Reply With Quote
Old 08-10-2008, 10:20 PM   #3
gster123
Moderator

gster123's Avatar

Join Date: May 2005
Location: Manchester Uk
Posts: 6,300
Thanks: 1
Thanked 51 Times in 45 Posts
Default

Quote:
Originally posted by Falott
for maya showing Image Sequences there is a very specific naming convention for the imageFiles. AVOID! -> [_] (underscores) and use [.] (points) like filename.number.extension
otherwise maya canīt read them properly and just shows black space.


It took me quite some time myself to find out XD, because I am used to underscores usually.
Same here, took quite a bit of head scratching to figure it out!
__________________
"No pressure, no diamonds" Thomas Carlyle
gster123 is offline   Reply With Quote
Old 08-10-2008, 11:12 PM   #4
dubai3d
Registered User

Join Date: May 2008
Posts: 245
Thanks: 0
Thanked 35 Times in 33 Posts
Default

thanks guys for replay, I did what you guys said, it is look great on the scene, but can be render only with mayasoftware, mental-ray comes black
dubai3d is offline   Reply With Quote
Old 09-10-2008, 01:02 AM   #5
Falott
Registered User

Falott's Avatar

Join Date: Jan 2005
Location: vienna
Posts: 1,095
Thanks: 3
Thanked 20 Times in 18 Posts
Default

mr cant read dds format if thatīs what youīre using.

try png maybe
__________________
everything starts and ends in the right place at the right time.
Falott is offline   Reply With Quote
Old 09-10-2008, 01:11 AM   #6
dubai3d
Registered User

Join Date: May 2008
Posts: 245
Thanks: 0
Thanked 35 Times in 33 Posts
Default

I got it to work with mental-ray now, I import the iff file , but it can not be seen in prsp view (black goe), it is shows the images only when I render it,
so I need work on the images(adjust), but can not be shown in prsp view, same as bumpmap(when you apply bumpmap to the goe, it shows the result only when you render it,

so I need your guys help if you have some experience with this section,
Attached Thumbnails
Click image for larger version

Name:	mental-ray.jpg
Views:	70
Size:	8.8 KB
ID:	40425
dubai3d is offline   Reply With Quote
Old 09-10-2008, 01:50 AM   #7
dubai3d
Registered User

Join Date: May 2008
Posts: 245
Thanks: 0
Thanked 35 Times in 33 Posts
Default

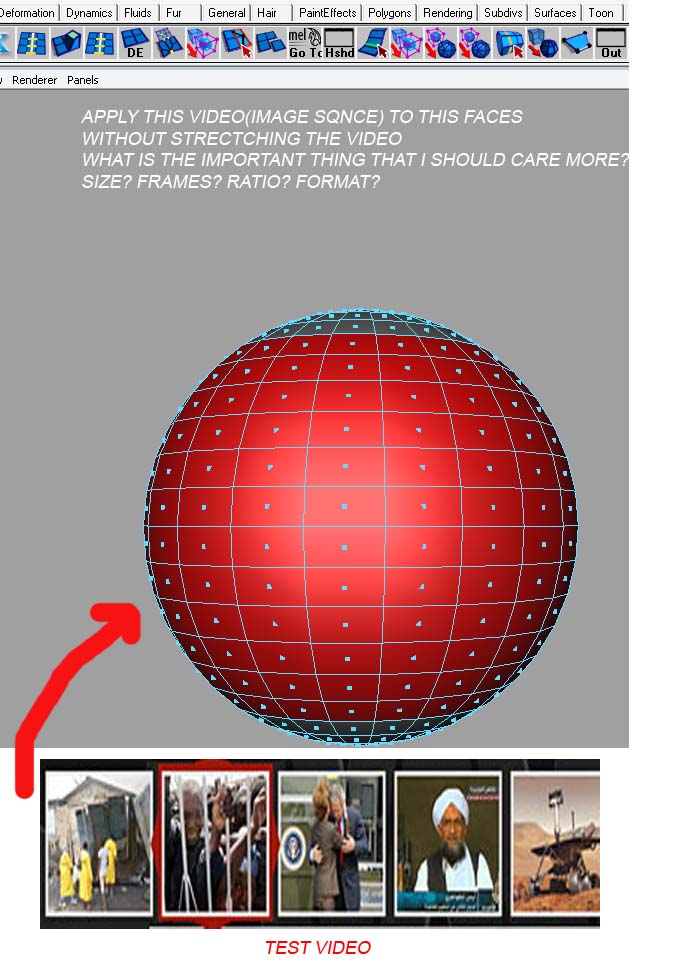

I got idee , instead of apply to different material to this faces and video, I put the 2 video together in AE and make it one so in this way much easy work on it, but there is few things that i should care of it, the video shouldn't stretch on the faces, what do you suggest?

should I
-apply the uv's map?
-flat the uv's
-work on the first image sequence in photo shop?

any idee?


p.s the video is just test
Attached Thumbnails
Click image for larger version

Name:	video_test.jpg
Views:	70
Size:	128.1 KB
ID:	40427
dubai3d is offline   Reply With Quote
Old 09-10-2008, 01:50 AM   #8
Falott
Registered User

Falott's Avatar

Join Date: Jan 2005
Location: vienna
Posts: 1,095
Thanks: 3
Thanked 20 Times in 18 Posts
Default

you have to make your perspView show textures. in the perspective panel und shading -> textures
__________________
everything starts and ends in the right place at the right time.
Falott is offline   Reply With Quote
Old 09-10-2008, 01:51 AM   #9
Falott
Registered User

Falott's Avatar

Join Date: Jan 2005
Location: vienna
Posts: 1,095
Thanks: 3
Thanked 20 Times in 18 Posts
Default

play with projecting uvs and the UVeditor
__________________
everything starts and ends in the right place at the right time.
Falott is offline   Reply With Quote
