Question Trying to make a "table leg" from CV Curve tool, just get a flag blob. . .

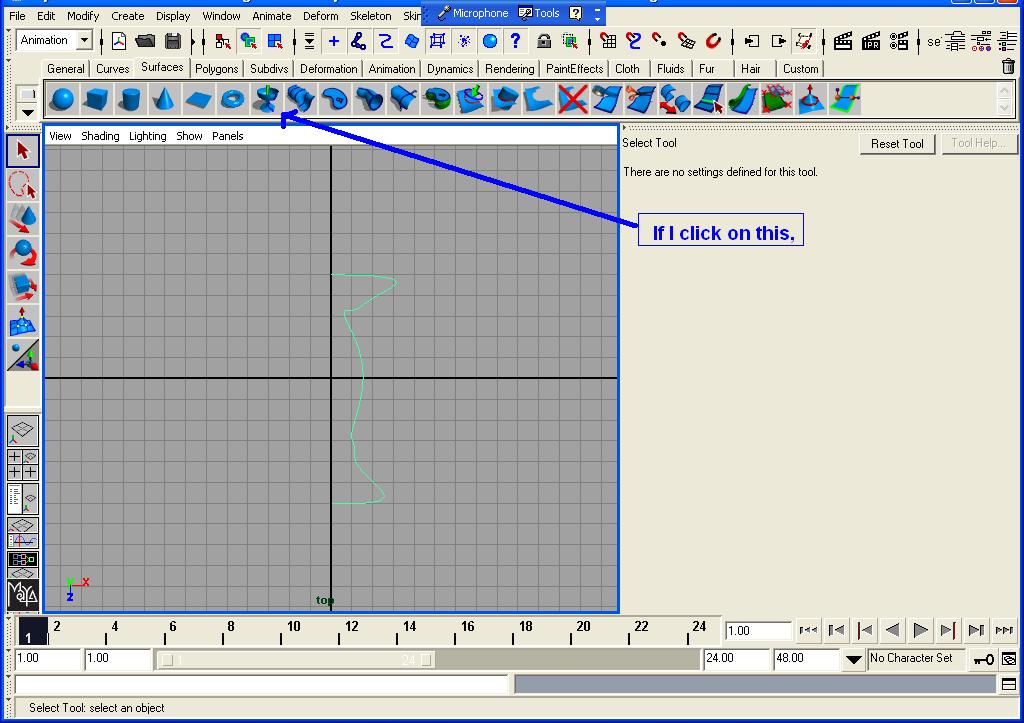

I found a few tutorials online (by Googling of course ) and came across one to make a table leg. I did fine all the way through, but at the end when it's supposed to turn the CV curve into a pomplete 360 polygonal object, it just turns into a glob of mess. I'll post the pictures I took (by using the "PrtScn" button of course, for those who may have forgotten how to do so),
Attached Thumbnails
Click image for larger version

Name:	maya probl.jpg
Views:	131
Size:	124.9 KB
ID:	21784
Spoudazo is offline   Reply With Quote
Old 20-06-2005, 03:32 PM   #2
Spoudazo
Subscriber

Spoudazo's Avatar

Join Date: Apr 2005
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
Default

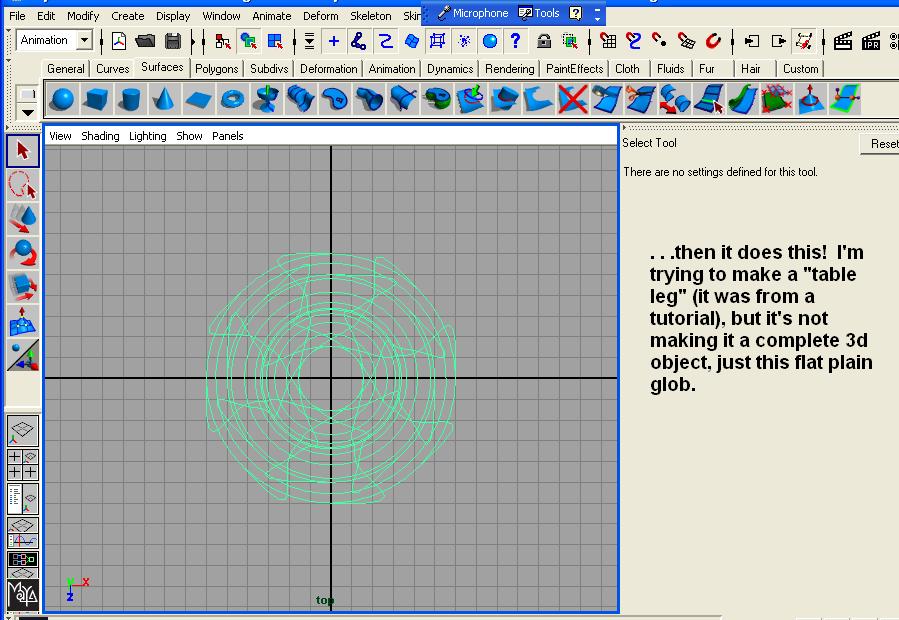

. . .then it turns into this blob. The guy doing the tutorial I think was using an older edition of Maya because he had a "Surface" button at the top of the screen.
Attached Thumbnails
Click image for larger version

Name:	maya probl 2.jpg
Views:	128
Size:	110.6 KB
ID:	21785
Spoudazo is offline   Reply With Quote
Old 20-06-2005, 05:48 PM   #3
brut
Registered User

Join Date: Sep 2004
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Revolve is set to the Y axis, and you've created your curve in the 'top' view insead of 'front'. Change to the Modeling toolset. Go to Surfaces-->Revolve, but click the tool options box. Then change the axis to Z. That should do it.
brut is offline   Reply With Quote
Old 20-06-2005, 07:23 PM   #4
alienscience
Subscriber

alienscience's Avatar

Join Date: Nov 2004
Location: In the middle of nowhere in VA
Posts: 749
Thanks: 0
Thanked 5 Times in 5 Posts
Default

Just to let you know, the modeling toolset is at the top. If you see where there is a white box that says animation, click on it, then go to modeling. And listen to brut, if you do what he says, everything should work fine.
alienscience is offline   Reply With Quote
Old 20-06-2005, 08:02 PM   #5
Spoudazo
Subscriber

Spoudazo's Avatar

Join Date: Apr 2005
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thankyou so, so, so much Brut and alienscience.
:nod:
