Default Polygon snap to curves problem.

Dear all,

I have got a problem in modeling with polygon.
I am currently modeling a low polygon head and I want to
snap point B to edge A (please see the picture).... but it does not work by enableing the snap to curve or by holding down "c" + MMB ~

Please advice. ~

thanks.
apafrank is offline   Reply With Quote
Old 20-07-2005, 02:21 AM   #2
apafrank
Registered User

Join Date: Jan 2005
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Default

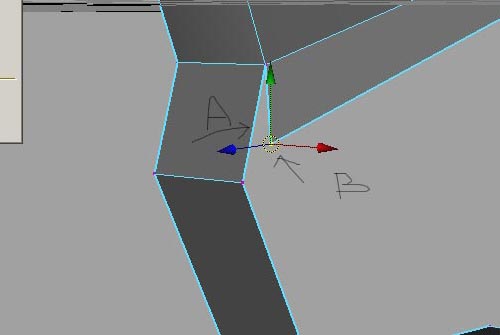

the picture.
Attached Thumbnails
Click image for larger version

Name:	maya_problem_screen.jpg
Views:	274
Size:	14.0 KB
ID:	22405
apafrank is offline   Reply With Quote
Old 20-07-2005, 02:36 AM   #3
mc-fleury
Registered User

mc-fleury's Avatar

Join Date: May 2005
Location: canada
Posts: 914
Thanks: 0
Thanked 0 Times in 0 Posts
Default

i dont really understand whta you want to merge but if you want to merge the vertex a to the vertex b you only have to select both and go to edit polygone-merge vertex.i hope i helped you
mc-fleury is offline   Reply With Quote
Old 20-07-2005, 04:17 AM   #4
apafrank
Registered User

Join Date: Jan 2005
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Quote:
Originally posted by mc-fleury
i dont really understand whta you want to merge but if you want to merge the vertex a to the vertex b you only have to select both and go to edit polygone-merge vertex.i hope i helped you
thanks.

What i want to do is to snap the vertex B to the middle of edge A so that i will not have any hole.
apafrank is offline   Reply With Quote
Old 20-07-2005, 08:48 AM   #5
azimuth
Subscriber

Join Date: Jun 2004
Posts: 119
Thanks: 0
Thanked 1 Time in 1 Post
Default

hi,

Im not sure a polygon vertex can be snapped to a edge between two other vertices.

I think the easiest way to do it would be split face 'a' accross the middle with the split polygon tool, then snap the vertex 'b' to the new vertex that gets created.


Plus that will give you a much smother and less complex mesh if you decide to poly smooth it or convert to subD's.

Hope that helps
azimuth is offline   Reply With Quote
Old 20-07-2005, 08:50 AM   #6
azimuth
Subscriber

Join Date: Jun 2004
Posts: 119
Thanks: 0
Thanked 1 Time in 1 Post
Default

a quick pick explaining.


Spilt the face along the red line (roughly), thus getting the 2 new vertices (big purple boxes)

Snap vertex B to the new vertex on the right hand side of face A, then merge vertices
Attached Thumbnails
Click image for larger version

Name:	maya_problem_screen.jpg
Views:	267
Size:	14.0 KB
ID:	22411

Last edited by azimuth : 20-07-2005 at 08:53 AM.
azimuth is offline   Reply With Quote
Old 20-07-2005, 11:38 AM   #7
keef
Subscriber

Join Date: Oct 2003
Location: Scotland
Posts: 74
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Azimuth

To snap the vert to the curve:

1. Select the vert to be moved.
2. Click on the curve, with the MMB held down - release the MMB when positioned where required.

The problem here is that some people try to MMB the vert and not the target curve. (Hope that made sence!!).

best

Keith
keef is offline   Reply With Quote
Old 20-07-2005, 11:47 AM   #8
swankymonkey
Subscriber

Join Date: Jul 2004
Location: Northern California
Posts: 445
Thanks: 0
Thanked 0 Times in 0 Posts
Default

You can snap to a poly edge. Just make sure the cursor is on the edge you want to snap to before you press the MMB. Otherwise you'll be waiting forever for that little guy to jump over to the edge you want. You may be able to adjust the snapping tolerance but it should work fine with the default.

Dave

Edit: Keef answered while I was typing ... spooky!

Last edited by swankymonkey : 20-07-2005 at 11:50 AM.
swankymonkey is offline   Reply With Quote
Old 20-07-2005, 03:16 PM   #9
matt4068
Subscriber

Join Date: Jun 2004
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
Default

just split the face in half and snap it to the new vert :/
matt4068 is offline   Reply With Quote
Old 20-07-2005, 04:04 PM   #10
keef
Subscriber

Join Date: Oct 2003
Location: Scotland
Posts: 74
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Matt4068

The curve can be on another piece of geometry so - in that instance you wouldn't necessarily want to go spliting a whole series of polygons, just for the hell of it...

best

Keith

PS Hi Dave - will send you a prompt by ESP when I send in my next reply........
keef is offline   Reply With Quote
Old 20-07-2005, 04:10 PM   #11
matt4068
Subscriber

Join Date: Jun 2004
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
Default

he cud then delete the edge and then delete the 6'th vert with one remaining of which he cud snap the vert to.
matt4068 is offline   Reply With Quote
