Old 19-01-2006, 11:29 PM   #1
Syphon
Registered User

Syphon's Avatar

Join Date: Jul 2005
Location: Australia, Perth
Posts: 17
Thanks: 0
Thanked 1 Time in 1 Post
Default IK Problem

I just have a small problem with one of my models i have all the ik handles inpplace but when i go to move it the joints twist in all different directions how do i go about changeing them to a direction i want??
Syphon is offline   Reply With Quote
Old 19-01-2006, 11:45 PM   #2
alienpioneer
Registered User

Join Date: Jun 2004
Location: Romania
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re

Try to freeze transformations ...
alienpioneer is offline   Reply With Quote
Old 20-01-2006, 12:13 AM   #3
NextDesign
Technical Director

NextDesign's Avatar

Join Date: Feb 2004
Posts: 2,988
Thanks: 33
Thanked 532 Times in 471 Posts
Default

constrain>pole vector
__________________
Imagination is more important than knowledge.
NextDesign is offline   Reply With Quote
Old 24-01-2006, 12:14 AM   #4
Syphon
Registered User

Syphon's Avatar

Join Date: Jul 2005
Location: Australia, Perth
Posts: 17
Thanks: 0
Thanked 1 Time in 1 Post
Default

Well non of them worked cus i had already attached it to the skin.

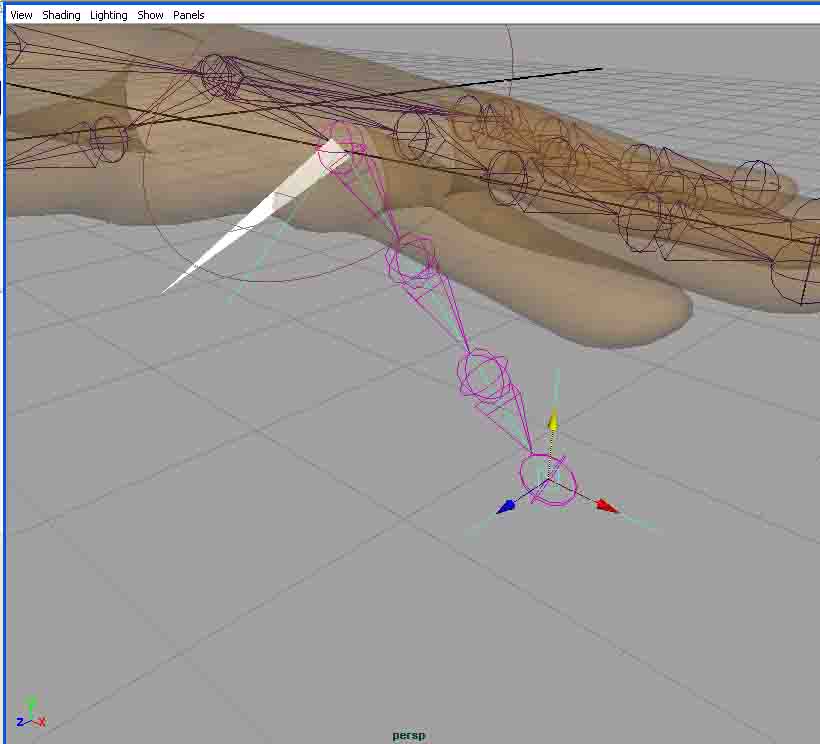

So i started again thinking i did something wrong the first time but its doing the same thing again. I froze the transformations but still didn't work. And my pole vector already has a weight of 1.ooo so i don't know why its doing these wied things. i have put some pics on to ilistrate more what is happening.
I need it to bend like a finger would but it wont!!:angery:
I haven't attched it to the skin this time though for if there is any thing i need to do before i do that.
Attached Thumbnails
Click image for larger version

Name:	1.jpg
Views:	47
Size:	36.1 KB
ID:	26580
Syphon is offline   Reply With Quote
Old 24-01-2006, 12:15 AM   #5
Syphon
Registered User

Syphon's Avatar

Join Date: Jul 2005
Location: Australia, Perth
Posts: 17
Thanks: 0
Thanked 1 Time in 1 Post
Default

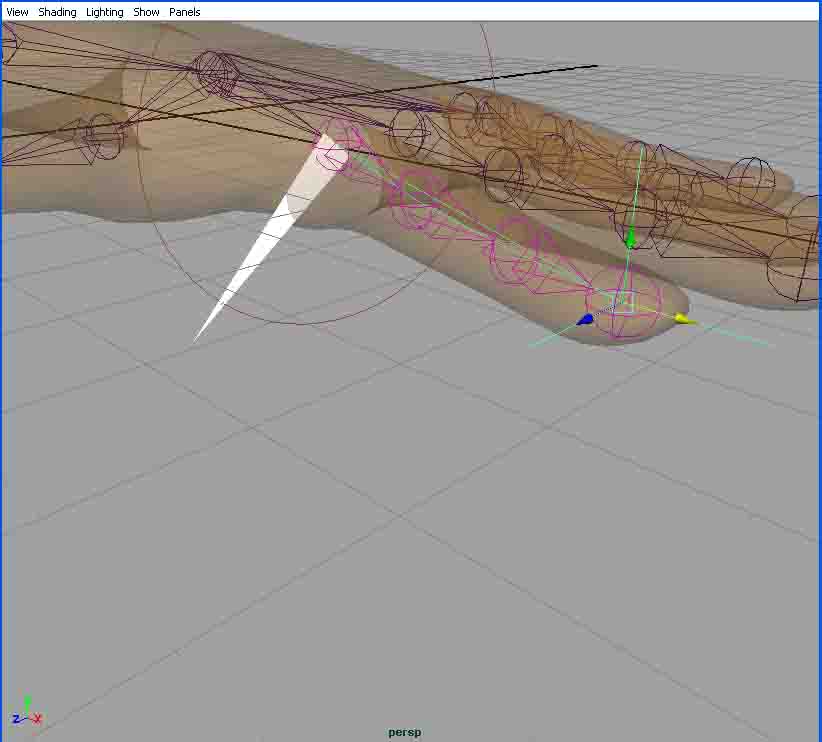

2
Attached Thumbnails
Click image for larger version

Name:	2.jpg
Views:	45
Size:	36.7 KB
ID:	26581
Syphon is offline   Reply With Quote
Old 24-01-2006, 12:17 AM   #6
Syphon
Registered User

Syphon's Avatar

Join Date: Jul 2005
Location: Australia, Perth
Posts: 17
Thanks: 0
Thanked 1 Time in 1 Post
Default

3
Attached Thumbnails
Click image for larger version

Name:	3.jpg
Views:	45
Size:	36.9 KB
ID:	26582
Syphon is offline   Reply With Quote
Old 25-01-2006, 05:23 AM   #7
darijo203
Registered User

darijo203's Avatar

Join Date: Sep 2004
Location: Croatia
Posts: 257
Thanks: 0
Thanked 0 Times in 0 Posts
Default

First of all I suggest you NOT to use IK on fingers,especialy IK rotate plane solver.

You usually put IK systems(RP and SC) in bone structure of 3 joints.

Use FK on fingers since it will give you a lot more control but make sure you got joint orientation set correctly.

Second, find out more on IK n FK systems and see differences...

Study other rigs...
__________________
ICQ:215-024-460

Last edited by darijo203 : 25-01-2006 at 05:27 AM.
darijo203 is offline   Reply With Quote
Old 25-01-2006, 05:43 AM   #8
mtmckinley
The Maya Mountain

mtmckinley's Avatar

Join Date: Aug 2002
Location: Seattle, WA
Posts: 8,245
Thanks: 1
Thanked 25 Times in 25 Posts
Default

I agree, use FK rather than IK. Otherwise, I imagine you need to disable the IK handle through the... (if I remember correctly) Modify > Evaluate Nodes > Disable All.

Then, you can rotate the finger joints and right click on them and Set Preffered Angle. Then, rotate them back to where they were and enable the IK again. It should bend the way you want.

If not (or even if it does) I'd say use FK.

Good luck.
__________________
-Mike
www.mtmckinley.net
The Maya Toolbelt
mtmckinley is offline   Reply With Quote
