how to make a path curve in the exect shape of a certain poligon scope?

# 1 30-01-2012 , 08:56 AM

Registered User
Join Date: Jan 2012

Posts: 2

how to make a path curve in the exect shape of a certain poligon scope?

hello everyone!
i'm trying to figure out how to do this: i made a chair poligon. now in reality this chair has a metal strip that goes around its scope. i'm trying to make it in maya by using nurbs extrude. the problem is this: i don't know how to make the basic path curve to be in the exect shape as the chair scope.

does anyone knows how to do that?

thanks guys!

Quote

# 2 30-01-2012 , 09:56 AM

Lifetime Member
Join Date: Feb 2010

Location: Australia

Posts: 4,255

can you screenshot mate???? this will make any answer a little easier

cheers bullet

bullet1968

"A Darkness at Sethanon", a book I aspire to model some of the charcters and scenes

Quote

# 3 30-01-2012 , 10:35 AM

Moderator
Join Date: Jan 2004

Location: Michigan, USA

Posts: 2,998

if you have already modeled the chair and you are saying you want to model something that fits around its perimeter then you can make the surface live and draw a nurbs curve onto it then then use that curve to create a surface.

but it might be more efficient just to duplicate polygons around the perimeter of the chair and use them as a starting point for the metal strip you are describing.

"If I have seen further it is by standing on the shoulders of giants." Sir Isaac Newton, 1675

Quote

# 4 30-01-2012 , 06:10 PM

Registered User
Join Date: Jan 2012

Posts: 43

-Download Zentools from creative crash.
-Use the tool named create curves from continuous edges, it will create a curve based on your edge selection on the poly.
-Extrude on this curve.
-PROFIT !!!!

OR

Project curve on mesh, but it's a bit more tedious..

Quote

# 5 30-01-2012 , 06:42 PM

The thin red line
Join Date: Aug 2009

Location: England

Posts: 4,472

You can convert a edge to a curve in maya............dave

Avatar Challenge Winner 2010

Quote

# 6 30-01-2012 , 08:52 PM

Moderator
Join Date: Jan 2004

Location: Michigan, USA

Posts: 2,998

yes I forgot they added the convert edge to nurbs curve recently.

"If I have seen further it is by standing on the shoulders of giants." Sir Isaac Newton, 1675

Quote

# 7 30-01-2012 , 09:53 PM

Registered User
Join Date: Jan 2012

Posts: 43

aw gawd I knew it but I couldn't find it, where did they put it??

Quote

# 8 30-01-2012 , 09:56 PM

The thin red line
Join Date: Aug 2009

Location: England

Posts: 4,472

Modify, convert, polygon edge to curve...........dave

Avatar Challenge Winner 2010

Quote

# 9 06-02-2012 , 04:36 PM

Registered User
Join Date: Jan 2012

Posts: 2

thanks everyone!!

I tried to convert 'polygon edge to curve', but it didn't work out since the curve mesh that came out after used 'extrude curve' on it, was too big and twisted for my chair scope shape...
but i got a nice result when i extruded the edge faces and beveled them (final result is etached).

Attached Thumbnails

Click image for larger version

Name: chair.JPG
Views: 969
Size: 17.8 KB
ID: 50404

Last edited by BRAB; 06-02-2012 at 04:37 PM. Reason: forgot to upload file

Quote

# 10 08-02-2012 , 02:20 PM

Registered User
Join Date: Jan 2012

Posts: 43

Modify, convert, polygon edge to curve...........dave

Originally Posted by daverave

it's not there, I have 2012, I can't see it.

DAMN!

After a quick search on the internets it seems to be a recurrent issue, oh well! Good to know if you miss it someday..
https://www.3dbuzz.com/vbforum/showth...t-Convert-menu

Quote

# 11 08-02-2012 , 03:41 PM

Moderator
Join Date: Jan 2004

Location: Michigan, USA

Posts: 2,998

It is there I think you are just not seeing it. I also have 2012....

Attached Thumbnails

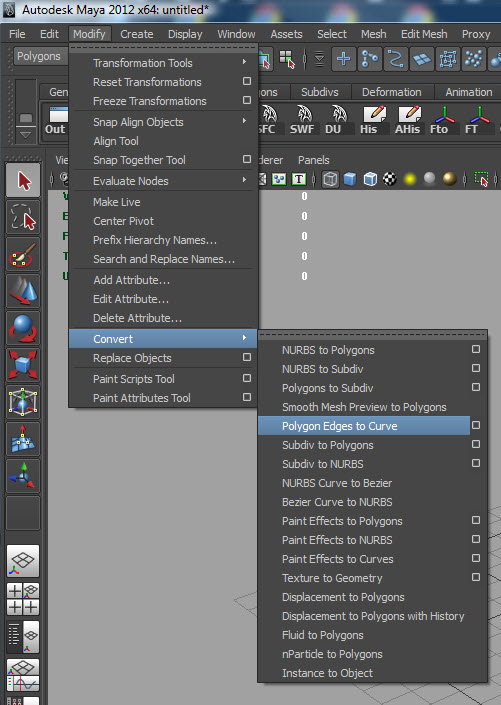

Click image for larger version

Name: 2-8-2012 10-40-17 AM.jpg
Views: 952
Size: 112.6 KB
ID: 50424

"If I have seen further it is by standing on the shoulders of giants." Sir Isaac Newton, 1675

Quote

# 12 11-02-2012 , 12:08 PM

Registered User
Join Date: Jan 2012

Posts: 43

Actually if you want to know the whole story here it is.
It really wasn't in my menu, so I asked my IT admin where I work and he looked into it.
He couldn't find it so he deleted all my prefs. WAY TO GO ADMIN.
I just couldn't accept it because of all my scripts shortcuts etc getting lost so I copied them back and dugg deep to find the culprit.
Turns out I have a script named HK local tools (great one btw) that rewrote the menu list and overrode it in TWO different files(that was very exasperating). The script was just adding a new submenu in the modify menu, but to do that you actually have to completely replace the menu. So I was actually stuck with the menu from... 2008..
I was able to find this thanks to you in a way, so thanks!
And keep in mind some scripts can ****up your menus, it might come in handy one day user added image

Quote

# 13 11-02-2012 , 07:30 PM

Moderator
Join Date: Jan 2004

Location: Michigan, USA

Posts: 2,998

ah ty for posting that information about scripts messing up the standard menus and I am glad you got it working again. Sorry about your prefs getting wiped. I hate when that happens to me. I am so paranoid about it I keep several copies of my maya docs folder.

"If I have seen further it is by standing on the shoulders of giants." Sir Isaac Newton, 1675

Quote
