Question Texture Map Display...

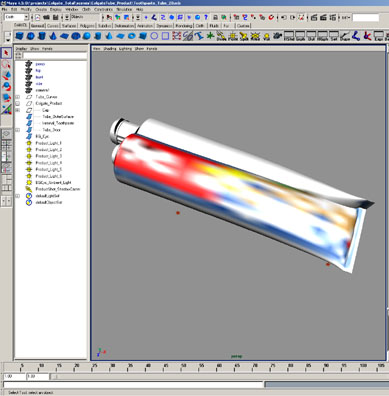

Hi all - Can someone please tell me why my texture map looks
like this attachment?

Renders OK, but I need it to look clean in Hardware Texturing
display, so I can model 3D around certain texture elements.

I find textures display just fine when you just slap them on in
Hypershade, but as soon as you adjust the 2D Texture Placement
parameters to tweak where it falls, it goes like this attachment.

Can anyone help?

Daniel
Attached Thumbnails
Click image for larger version

Name:	distorted.jpg
Views:	51
Size:	42.6 KB
ID:	7762
dkouts is offline   Reply With Quote
Old 10-06-2003, 12:03 AM   #2
Darkware
Subscriber

Darkware's Avatar

Join Date: Oct 2002
Location: USA
Posts: 1,172
Thanks: 0
Thanked 4 Times in 4 Posts
Default

Don't know anything about 2D placements, but have you thought about not using one and mapping with your UV's? It's fairly easy to modify UV's. I'll fiddle around with 2D placements now and see if I can't figure out something for you though before someone else posts.
__________________
www.Darkware3D.com
Darkware is offline   Reply With Quote
Old 10-06-2003, 12:07 AM   #3
dkouts
Registered User

dkouts's Avatar

Join Date: Oct 2002
Location: Australia
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Bear in mind this is NURBS geometry.

Cant say Im familiar at all with the UV method of mapping,
but anything that helps would be appreciated.

Daniel
dkouts is offline   Reply With Quote
Old 10-06-2003, 12:10 AM   #4
Darkware
Subscriber

Darkware's Avatar

Join Date: Oct 2002
Location: USA
Posts: 1,172
Thanks: 0
Thanked 4 Times in 4 Posts
Default

ok, right-click your object. Choose Material>Material Attributes. This will bring up the attribute window for your shader. Under the "hardware texturing" tab is "texture resolution." Switch this to a higher level, then press close to exit the window.
__________________
www.Darkware3D.com
Darkware is offline   Reply With Quote
Old 10-06-2003, 12:24 AM   #5
dkouts
Registered User

dkouts's Avatar

Join Date: Oct 2002
Location: Australia
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Hey thanks, Darkware.

Thats ALMOST got it.

It displays better, but do you know the "Fix Texture Warp"
button in the Attribute Editor of the object? Ive checked that
so that the texture doesnt warp and bend in the render.

EG - If you apply a texture and it looks all pinched at certain
areas (like where NURB isoparms gather close together) you
can check the "Fix Texture Warp" button and it seems to smooth
the placement out, evenly across the surface.

All good and well, but I still cant get the Hardware Display to show
exactly the texture placement that the Renderer will show.

Is this possible?

Daniel
dkouts is offline   Reply With Quote
Old 10-06-2003, 12:32 AM   #6
dkouts
Registered User

dkouts's Avatar

Join Date: Oct 2002
Location: Australia
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Question

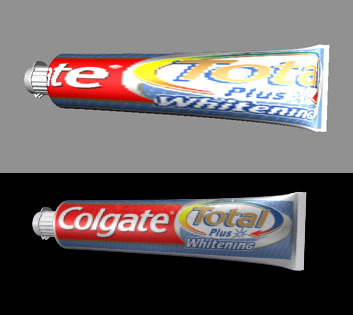

To better explain...

Compare the Hardware Display (above)

to the Render (below)

How do I display exactly what will render?


Dan
Attached Thumbnails
Click image for larger version

Name:	compare.jpg
Views:	46
Size:	29.1 KB
ID:	7763
