Default Help with cutting circle or a particular shpe into polygon...

hello m8s...
This is what I am trying to do...
take for example,... a polygonal object of whatever.. and I want drow a smooth shape on the sides of it.... so, at the end I can cut it out and have a polygon with a smooth hole in it...

...I hope I explained myself smoothly... :p :bgreen:
LSphinx is offline   Reply With Quote
Old 28-11-2003, 11:34 PM   #2
Saiyan
Registered User

Saiyan's Avatar

Join Date: Apr 2002
Posts: 441
Thanks: 0
Thanked 1 Time in 1 Post
Default

Not quite sure what your trying to ask. Are you trying to make a hole in an object?...if so...what's the smooth shape for?....what is the matrix...err....the smooth shape?

Or do you mean that when you cut out a shape from another object you want it to be a smooth edge (Where you cut the object from)

Last edited by Saiyan : 28-11-2003 at 11:36 PM.
Saiyan is offline   Reply With Quote
Old 28-11-2003, 11:40 PM   #3
LSphinx
Registered User

LSphinx's Avatar

Join Date: Feb 2003
Location: New York
Posts: 275
Thanks: 0
Thanked 0 Times in 0 Posts
Default

ok,...
I have a polygon sphere, and I want to cut the perfect circle on it's side...
how do I do it... ?
LSphinx is offline   Reply With Quote
Old 29-11-2003, 07:33 AM   #4
Pony
Subscriber

Pony's Avatar

Join Date: Mar 2003
Location: with PonysGirl
Posts: 2,573
Thanks: 0
Thanked 6 Times in 6 Posts
Default

ok.. is the pols of the sphere whare there pointing up ?? is the sphere still round ? if you don't have other plans for the sphere.. the eazyes thing to do would be to tern it on its side so the poles are ponting the direction you want the hole. you can get it to do this fast buy using the channel box. one of the rotait Y's, or Z. just put in 90 or -90.. what ever gets it facing how you want.. thin what you will do is pick the faces that is about the size you want the hole.. extrude poly face.. and push them back.. make sure the keep faces together is on. I wouldn't push them back much at first.. to leave a edge there to bevle if you want.. and thin do it agin and push them the rest of the way back.

see how that dose for you.. if that is a option.. don't know what your plans are for the sphere..
Pony is offline   Reply With Quote
Old 29-11-2003, 05:06 PM   #5
lukedukeofpuke
Registered User

lukedukeofpuke's Avatar

Join Date: Oct 2003
Location: Columbus, OH
Posts: 98
Thanks: 0
Thanked 0 Times in 0 Posts
Default

You could try using a boolean. Just make another sphere but make it the same size you want the hole to be. Then intersect the too where you want the hole. Select the object you want to cut FIRST then the object to cut with SECOND. Then, Polygon>Booleans>Difference. You can then select the second object in the HyperG and scale and move it. Howevere you should be aware that it is a vary good idea to dellete your history when you are done because booleans can cause some problem if you dont.
__________________
Just a squirrel trying to get a nut!
lukedukeofpuke is offline   Reply With Quote
Old 29-11-2003, 05:57 PM   #6
Pony
Subscriber

Pony's Avatar

Join Date: Mar 2003
Location: with PonysGirl
Posts: 2,573
Thanks: 0
Thanked 6 Times in 6 Posts
Default

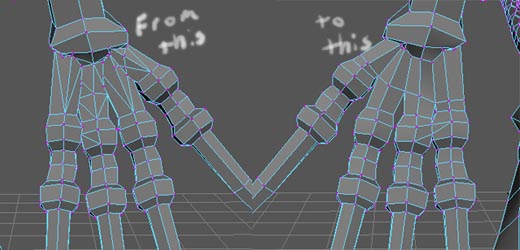

booleans, can be cool but you have to be carefull with them or you end up having to get your mesh looking like pic on the left below. Had to spend some time cleaning up, hince the pic on the right.
Attached Thumbnails
Click image for larger version

Name:	wip3d001.jpg
Views:	1068
Size:	41.1 KB
ID:	11838
Pony is offline   Reply With Quote
Old 30-11-2003, 04:20 AM   #7
LSphinx
Registered User

LSphinx's Avatar

Join Date: Feb 2003
Location: New York
Posts: 275
Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up

thanx guys.. :p
that really helped.. :bgreen:
LSphinx is offline   Reply With Quote
Old 30-11-2003, 05:21 AM   #8
LSphinx
Registered User

LSphinx's Avatar

Join Date: Feb 2003
Location: New York
Posts: 275
Thanks: 0
Thanked 0 Times in 0 Posts
Talking

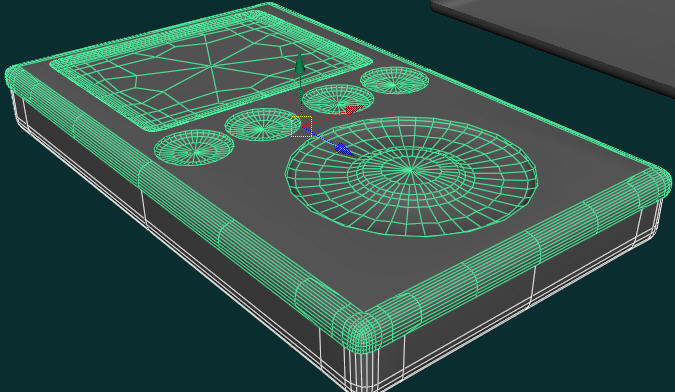

with your help and with my limited knowledge of Maya,.. I think I'm getting somewhere...
Attached Thumbnails
Click image for larger version

Name:	2222222.jpg
Views:	1056
Size:	65.4 KB
ID:	11852
LSphinx is offline   Reply With Quote
