Old 08-12-2003, 07:48 AM   #1
PilotLtKettch
Registered User

PilotLtKettch's Avatar

Join Date: Feb 2003
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default neck rigging

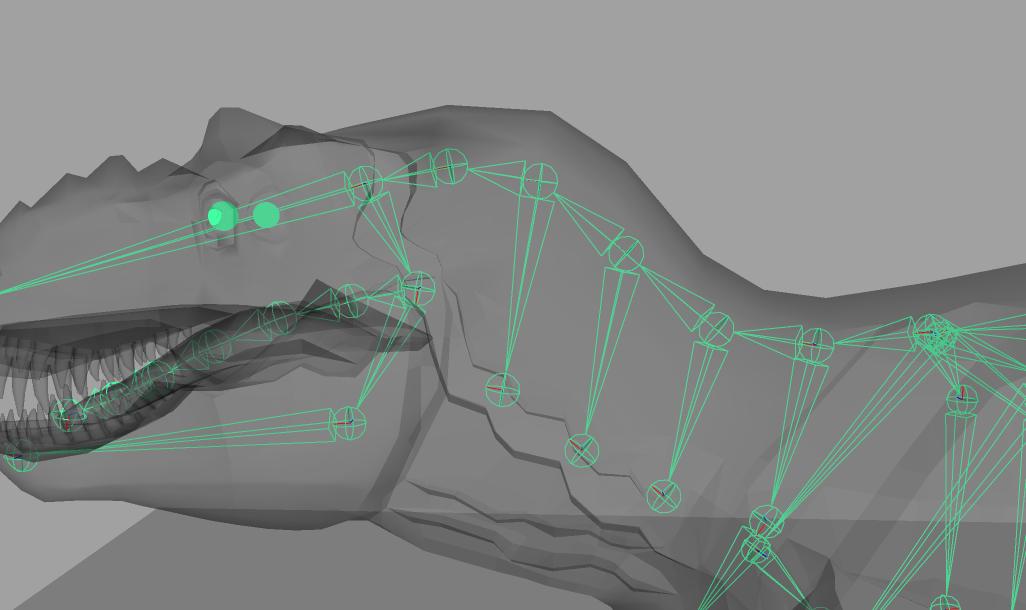

is there a way to setup the neck of my T. rex so that I don't have to position him joint by joint or cv by cv? for instance, can I just place something like a cube at the top of the neck, move that and the rest moves accordingly? any help would be much appreciated
Attached Thumbnails
Click image for larger version

Name:	neck.jpg
Views:	82
Size:	47.0 KB
ID:	11979
PilotLtKettch is offline   Reply With Quote
Old 08-12-2003, 08:20 AM   #2
Pony
Subscriber

Pony's Avatar

Join Date: Mar 2003
Location: with PonysGirl
Posts: 2,573
Thanks: 0
Thanked 6 Times in 6 Posts
Default

Heck,l I'd like to know more about controling a lot bones in a curve.
Pony is offline   Reply With Quote
Old 08-12-2003, 08:36 AM   #3
dannyngan
Registered User

dannyngan's Avatar

Join Date: Dec 2002
Location: Seattle, WA
Posts: 1,154
Thanks: 0
Thanked 1 Time in 1 Post
Default

One option is to setup a spline IK control to move the neck joints. That would allow you to move the head and then have the neck follow. Another option is to use expressions to transform the neck joints with a single control object. That is more akin to animating via FK, but it can be easier to manage than a spline IK setup.
__________________
Danny Ngan
Animator | Amaze Entertainment
my website | my blog | my job
dannyngan is offline   Reply With Quote
Old 09-12-2003, 05:41 AM   #4
DgAPc
Subscriber

Join Date: Dec 2002
Posts: 123
Thanks: 0
Thanked 1 Time in 1 Post
Default

You can use the connection editor to.
DgAPc is offline   Reply With Quote
Old 09-12-2003, 08:46 AM   #5
PilotLtKettch
Registered User

PilotLtKettch's Avatar

Join Date: Feb 2003
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

ok, I used the same technique as the salty the seal spine setup in the learning maya book, in which you cluster the curve and set the weights for each of the cvs, only problem is, is that when my t. rex moves the cluster doesn't move with it, it stays behind, but when I make it the child of one of the joints, his neck juts out in front when the joint moves forward and recedes when the joint moves backwards, is there a way to solve this? thanks in advance
PilotLtKettch is offline   Reply With Quote
Old 09-12-2003, 08:49 AM   #6
PilotLtKettch
Registered User

PilotLtKettch's Avatar

Join Date: Feb 2003
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

never mind I figured it out, just click on relative in the attribute editor
PilotLtKettch is offline   Reply With Quote
