Default Brick Texture on PolyCubes

Hi

I am now modeling a kinder garden and the design has some walls placed in parallel but each has a different length

some of then I traced from the plan I was given and others were merely a copy which was rescaled.

I was Using the Planar projection using the same settings (such as U = 3 V = 3
Problem is that in some cases the relation was kept but in others - the texture appeared stretched

Any Idea ?

Nir
__________________
Nir Sullam
Architectural Visualizations Page: www.orvatsel.com/index2.html
Maya Page: www.orvatsel.com/maya
www.nirsullam.com
nirsul is offline   Reply With Quote
Old 28-08-2003, 09:24 PM   #2
mtmckinley
The Maya Mountain

mtmckinley's Avatar

Join Date: Aug 2002
Location: Seattle, WA
Posts: 8,245
Thanks: 1
Thanked 25 Times in 25 Posts
Default

I may not be understanding your situation, but I would think you could adjust the UVs of the individual walls to get the same texture to work for each.
__________________
-Mike
www.mtmckinley.net
The Maya Toolbelt
mtmckinley is offline   Reply With Quote
Old 28-08-2003, 09:26 PM   #3
nirsul
Subscriber

nirsul's Avatar

Join Date: Oct 2002
Location: Haifa, Israel
Posts: 437
Thanks: 0
Thanked 0 Times in 0 Posts
Default

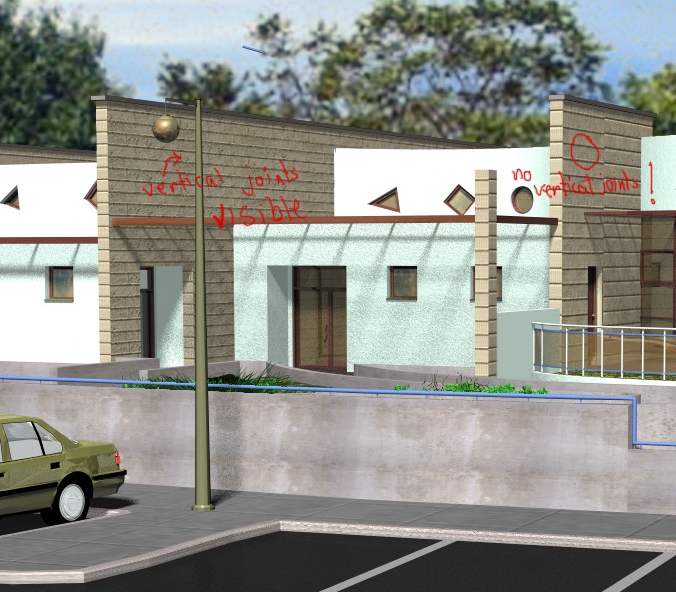

here is an early render:
Attached Thumbnails
Click image for larger version

Name:	simplyq.jpg
Views:	56
Size:	288.9 KB
ID:	10193
__________________
Nir Sullam
Architectural Visualizations Page: www.orvatsel.com/index2.html
Maya Page: www.orvatsel.com/maya
www.nirsullam.com
nirsul is offline   Reply With Quote
Old 28-08-2003, 09:30 PM   #4
nirsul
Subscriber

nirsul's Avatar

Join Date: Oct 2002
Location: Haifa, Israel
Posts: 437
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Quote:
Originally posted by mtmckinley
I may not be understanding your situation, but I would think you could adjust the UVs of the individual walls to get the same texture to work for each.

Yes but in some cases , I had to create a wall out of 3-4 pieces (somtimes Boolean does not work for some unknown reason)

and even when selecting all the faces together (thus creating a 1 UVset) - it is not consistent , although in some cases it is.


When manually twaeking you get to see the seams

Wow Michael - you were quick

Nir
__________________
Nir Sullam
Architectural Visualizations Page: www.orvatsel.com/index2.html
Maya Page: www.orvatsel.com/maya
www.nirsullam.com
nirsul is offline   Reply With Quote
Old 30-08-2003, 01:02 AM   #5
fredriksson
Subscriber

fredriksson's Avatar

Join Date: Jun 2003
Location: Sweden
Posts: 571
Thanks: 0
Thanked 1 Time in 1 Post
Default

On the wall to the right, it seems like the texture filtering filters out the vertical joints, would be pretty easy to turn the filtering off to verify (even if that may lead to ugly aliasing).
__________________
Björn 'santa' Fredriksson

<A href=http://www.bjornfredriksson.com>Site Online.</A>

Check out our 1on1on1 battle for the SandCrawlers.
fredriksson is offline   Reply With Quote
Old 30-08-2003, 09:35 AM   #6
nirsul
Subscriber

nirsul's Avatar

Join Date: Oct 2002
Location: Haifa, Israel
Posts: 437
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Bjorn

TO show the vertical joints I had to set the UV scales to 3 and .2 instead of 3 and 3 .

What I still dont know is why the texture puts itself inconsistently on the planes (I am not suing the Automatic method) ?

I put the final render in the Finished work forum

nir
