# 1 14-09-2009 , 06:38 PM
Registered User
Join Date: Nov 2007
Posts: 5

exturude square edges with 90 degree angle

hard to put a title but im trying to follow a tutorial this is what im trying to achieve:

user added image

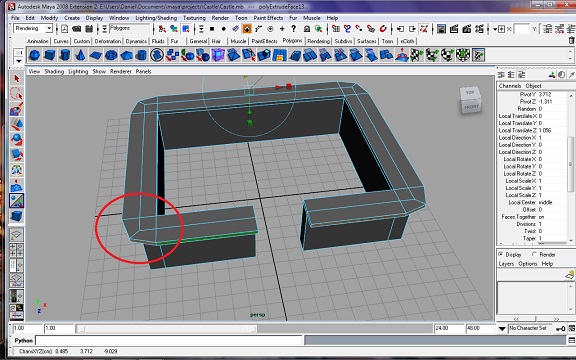

i have attached an image showing how mine turns out?

i cant get the top wall to extrude leaving a 90 degree angle.

Attached Thumbnails
# 2 14-09-2009 , 07:11 PM
honestdom's Avatar
The Nurb Herd
Join Date: Oct 2007
Location: London
Posts: 2,381
do they translate or scale it? try using the scale tool.

# 3 14-09-2009 , 07:13 PM
Registered User
Join Date: Nov 2007
Posts: 5
ahh Scaling it seemed to do the trick thanks.
