# 1 17-06-2011 , 11:32 PM
Registered User
Join Date: Jun 2011
Posts: 5

Using Birail 2

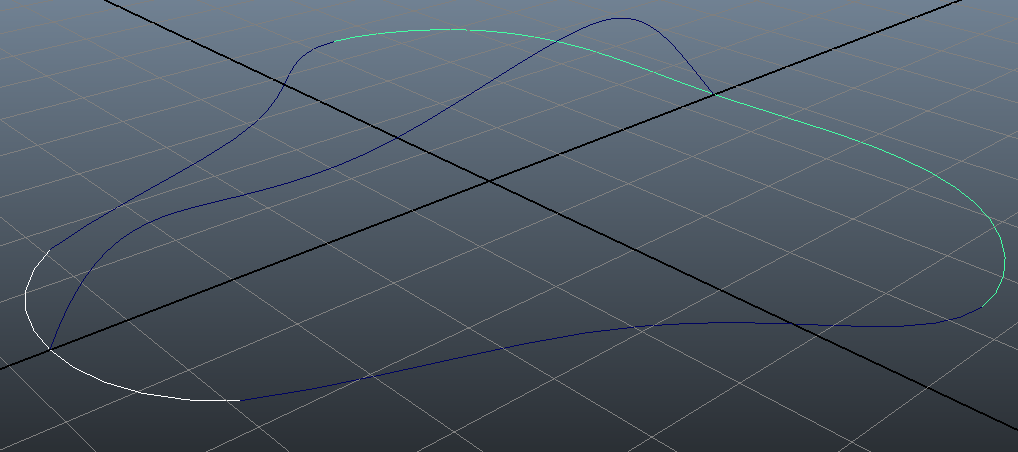

Attached Thumbnails
# 2 18-06-2011 , 04:14 PM
Registered User
Join Date: Jun 2011
Posts: 5
But nobody knows the Birail2 comand???

# 3 18-06-2011 , 06:16 PM
honestdom's Avatar
The Nurb Herd
Join Date: Oct 2007
Location: London
Posts: 2,381
did you read the instructions on how to use birail?

i doubt you will get the results you want with birail2 and those curves.

# 4 18-06-2011 , 07:01 PM
Registered User
Join Date: Jun 2011
Posts: 5
Thanks for answer!
I select the curves green and white, and then i select the middle and right curves.
I think surface will create follow the middle and the right curves, starting from the green curve

# 5 20-06-2011 , 01:15 AM
Registered User
Join Date: Jun 2011
Posts: 5

# 6 20-06-2011 , 04:23 AM
ctbram's Avatar
Moderator
Join Date: Jan 2004
Location: Michigan, USA
Posts: 2,998
Hello iJIM,

You are on the right track but to get the result I believe you want you would need to do a birail+2 operation and two boundry operations at the front and back of the seat. Then rebuild the three surfaces, convert to polygons and combine them.

I will record a video for you to demonstrate the process, which is probably more complex then just starting with a nurbs sphere and sculpting the seat, but I cannot resist an opportunity to demonstrate Maya's nurbs tools. Although antiquated and in serious need of some developer love they can still be very helpful if you can deal with their many quirks (smile).

https://dl.dropbox.com/u/5501128/bira...icycleSeat.mp4


"If I have seen further it is by standing on the shoulders of giants." Sir Isaac Newton, 1675

Last edited by ctbram; 20-06-2011 at 06:58 AM.
# 7 20-06-2011 , 10:07 AM
Registered User
Join Date: Jun 2011
Posts: 5
Hey thank you so much !!!! I'm italian and my english is very bad but i understand perfectly what i have to do for my saddle.
Thank you again
